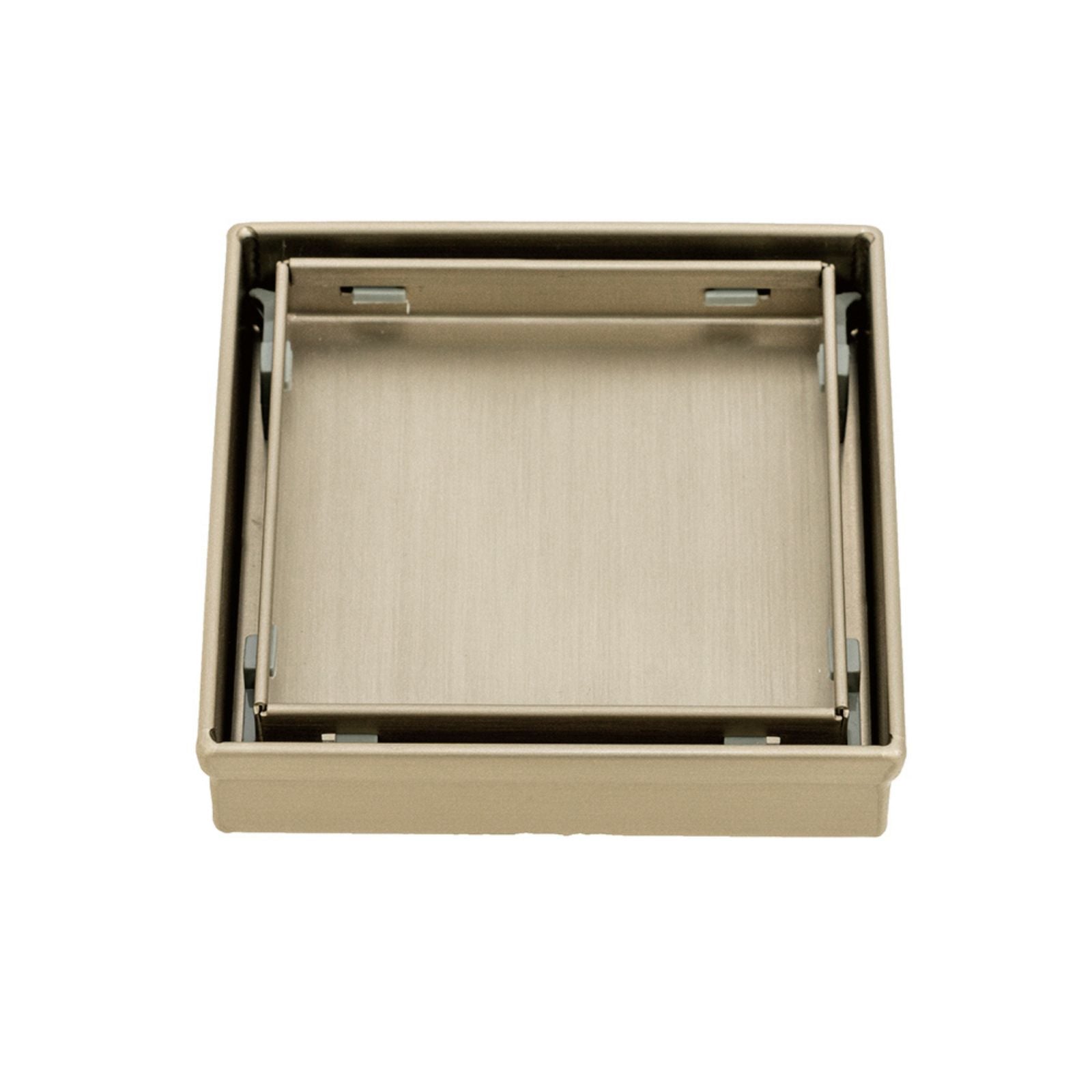

Radiant Tile Insert Square Floor Waste - Warm Brushed Nickel
SKU: 316-WBN-RGS-100-38
Wastes Traps Grates by Radiant
- Manufactured from 316 marine grade stainless steel
- Warm Brushed Nickel PVD finish
- 100mm x 100mm
- Australian Watermark approved
- 12mm deep insert can accommodate up to 10mm tile and adhesive
- 38mm Outlet Variant fits 50mm Waste (Puddle Flange)
- 74mm Outlet Variant fits 80mm Waste
- NOT recommended for use directly below unrestricted overhead rain showers due to the excessive amount of water delivered
- Puddle Flange is NOT included
- 7 Year Warranty
Specifications
- Construction material: Stainless Steel
- Finish/coating: PVD
- Width: 100mm
- Length: 100mm
- Depth: 54mm
- Insert diametre: Ø 38mm / 74mm
- Waste pipe size: 80mm
- Warranty: 7 years
Spec Sheet
Download the specification sheet below:

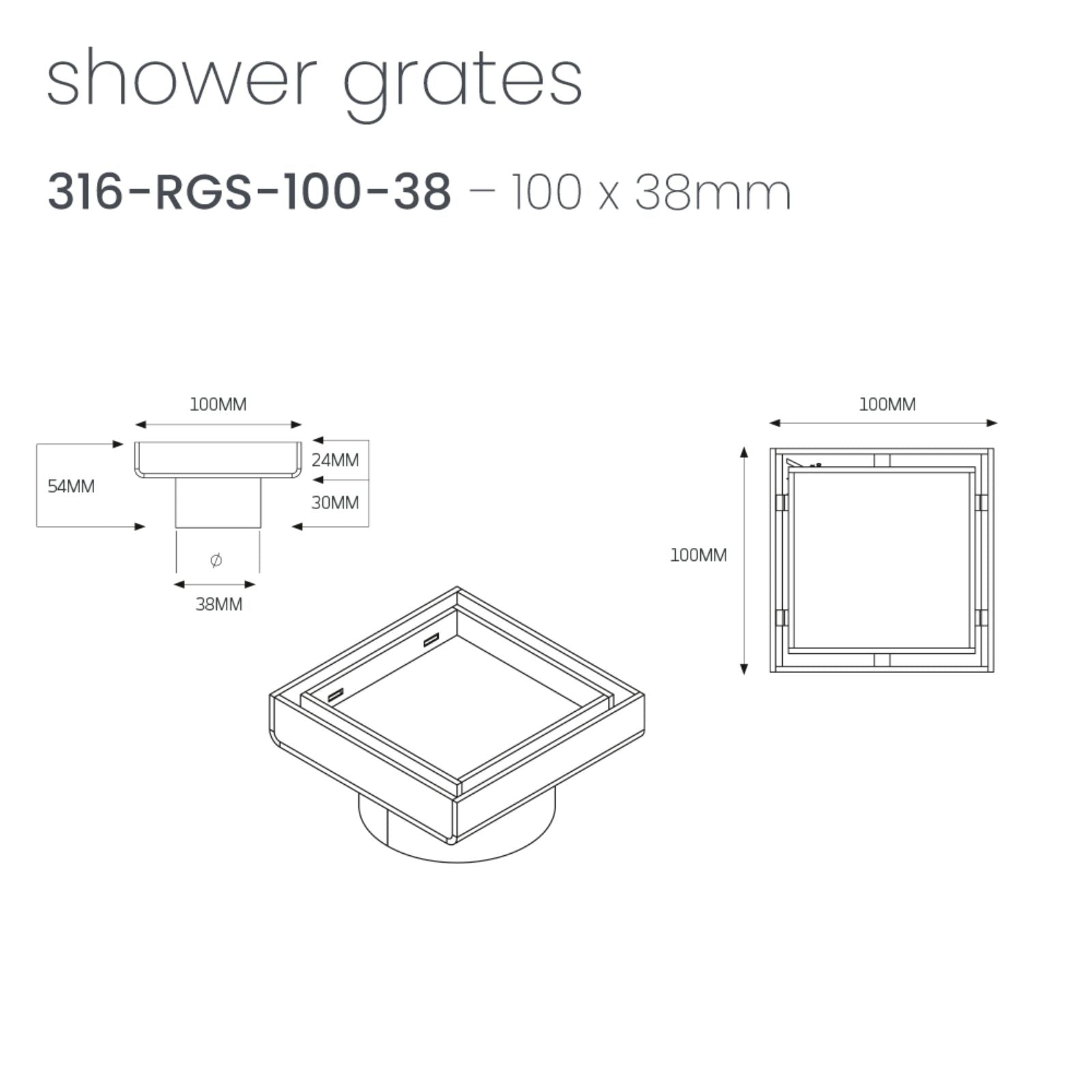

Radiant Square Tile Insert Shower Grate 100mm + 38mm Outlet Warm Brushed Nickel
Radiant Square Tile Insert Shower Grate 100mm + 74mm Outlet Warm Brushed Nickel
What's In The Box
- Radiant Tile Insert Square Shower Grate - Brushed Nickel
