- Safety Release automatically unlocks the inside handle upon entry to minimise the risk of being locked in
- Lockout Release automatically unlocks the outside handle when the inside handle or snib is operated
- Factory set for left hand opening doors, easily changed for right hand opening doors
- The Nexion Mechanical Entry Lockset Lockwood's patented LockAlert status indicator that shows the Lockset mode at a glance. The lockset can operate in three modes.
- Secure Mode (red): Locked from the inside and outside
- Safety Mode (yellow): Locked from the outside and free to exit from inside
- Passage Mode (green): Free to enter from outside and free to exit from inside.
- Available in a Chrome Plate and Satin Chrome finish
- L1 Summit Lever Handle

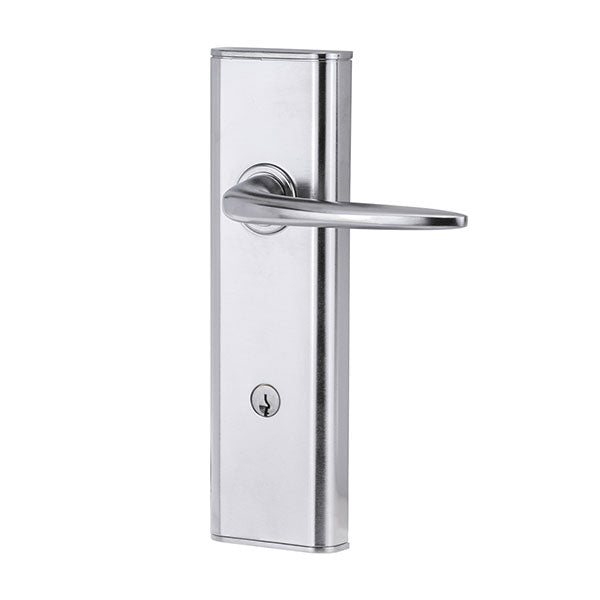

The Lockwood Nexion® Mechanical Entry Locksets represent the next generation in home security.
Designed and manufactured to the highest quality standard, the Lockwood Nexion range has set the benchmark for safety, security and style. The Nexion range of deadlatches offers the ultimate protection for your home and family.
The Nexion Mechanical Entry Lockset is available in two different plate styles and a range of lever styles, allowing you to achieve a consistent style throughout your home.
- Material: Zinc Alloy
- Finish: Satin Chrome

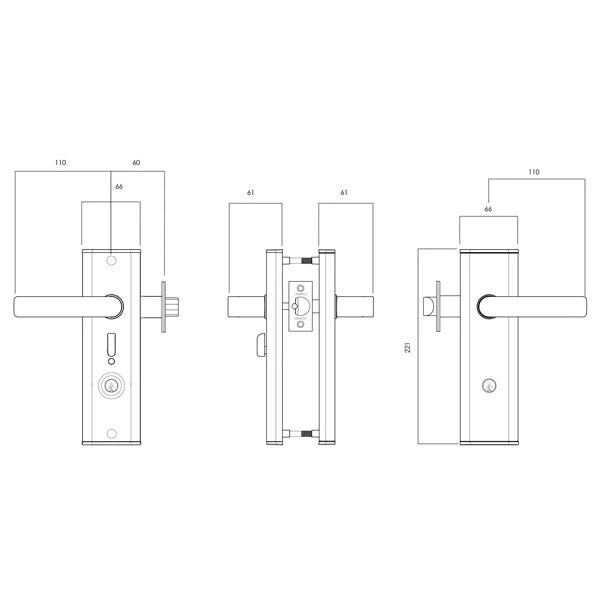

- Backset: 60mm standard
- Backset Latch: 70mm available as an accessory
- Latch: 13mm projection brass bolt.
- Door Thickness: 35 to 45mm
- Internal and external Cylinder
- 5 pin tumbler mechanism with 6 pin capability
- Brass cylinders and brass barrels
What's In The Box
- 2 x levers/backplate
- Lockwood Nexion L1 Mechanical Double Cylinder Entrance Lock
- Box strike with concealed crossgrain door frame strengthening screw
- Installation Template
- 2 x keys
