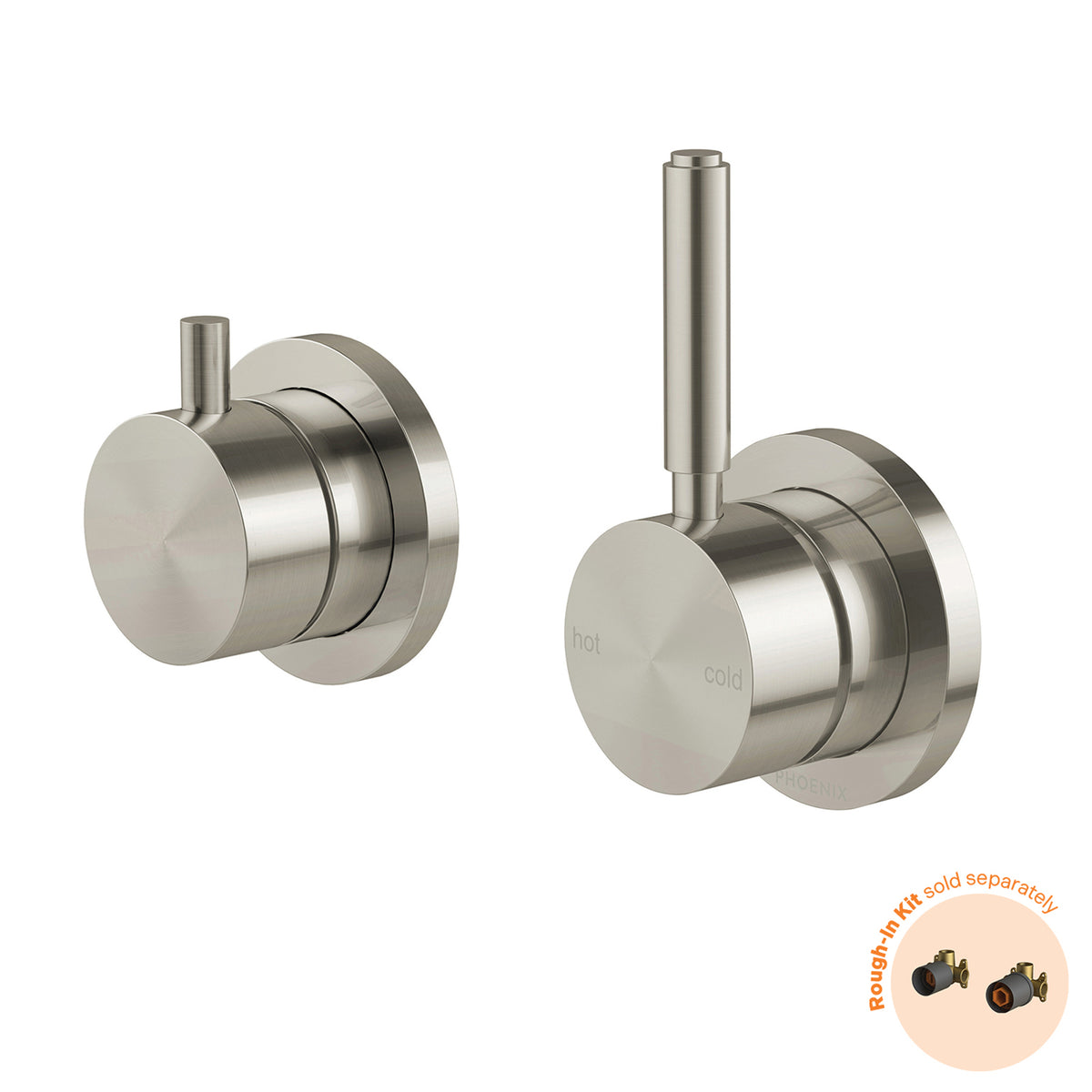

Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer Pin Up Fit-Off Kit - Brushed Nickel
SKU: 146-2942-40-1
The fit-off half of the Vivid MKII pin up shower and bath diverter, for pairing with a SwitchMix Shower / Bath Diverter Mixer Rough-In Kit with Flexible Button. It includes the SwitchMix patented cartridge and a ceramic 180 degree rotary diverter that switches between two connected outlets. With the rough-in already in the wall, this is the part you change when an existing Vivid MKII diverter needs a different finish. Brushed nickel is the softer, muted option.
- This is the fit-off half only, so it is the cheaper way in if the SwitchMix Shower / Bath Diverter Mixer Rough-In Kit with Flexible Button is already in your wall.
- Ceramic 180 degree rotary diverter switches water between two connected outlets from a single control.
- The SwitchMix patented cartridge is included, so the working part comes with it.
- Fitting this kit changes the finish of an existing Vivid MKII diverter without touching the tiles.
- Lead free brass body.
- The 15 year cartridge warranty covers the working part, not just the visible hardware.
Specifications
WELS water efficiency: N/A
WELS water consumption: N/A
WELS registration number: N/A
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: Electroplating
Operating mechanism: Ceramic 180° rotary diverter
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa

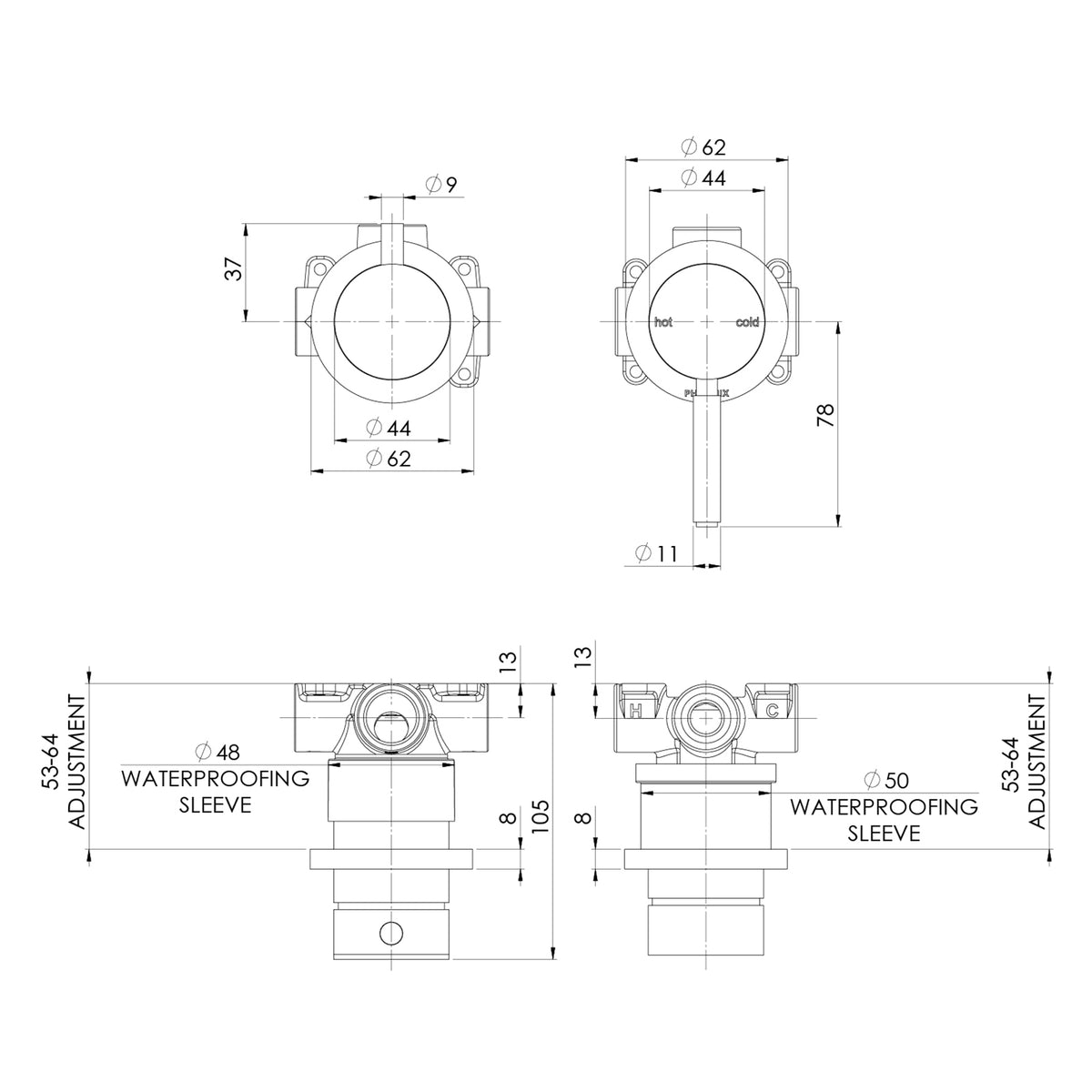

Overall height: 109mm
Spout function: Fixed
Overall depth: 112mm
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty
What's In The Box
1x Shower / Bath Diverter Mixer Pin Up , 1x Installation kit, 1x Installation instructions, 1x Warranty card
Downloads
Download the specification sheet below:
Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer Pin Up Fit-Off Kit - Brushed Nickel
Download the installation instructions below:
Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer Pin Up Fit-Off Kit - Brushed Nickel
