Thermogroup Underfloor Heating 200W/m² Full Kit
SKU: 112002T
Bathroom Heating & Ventilation by Thermogroup

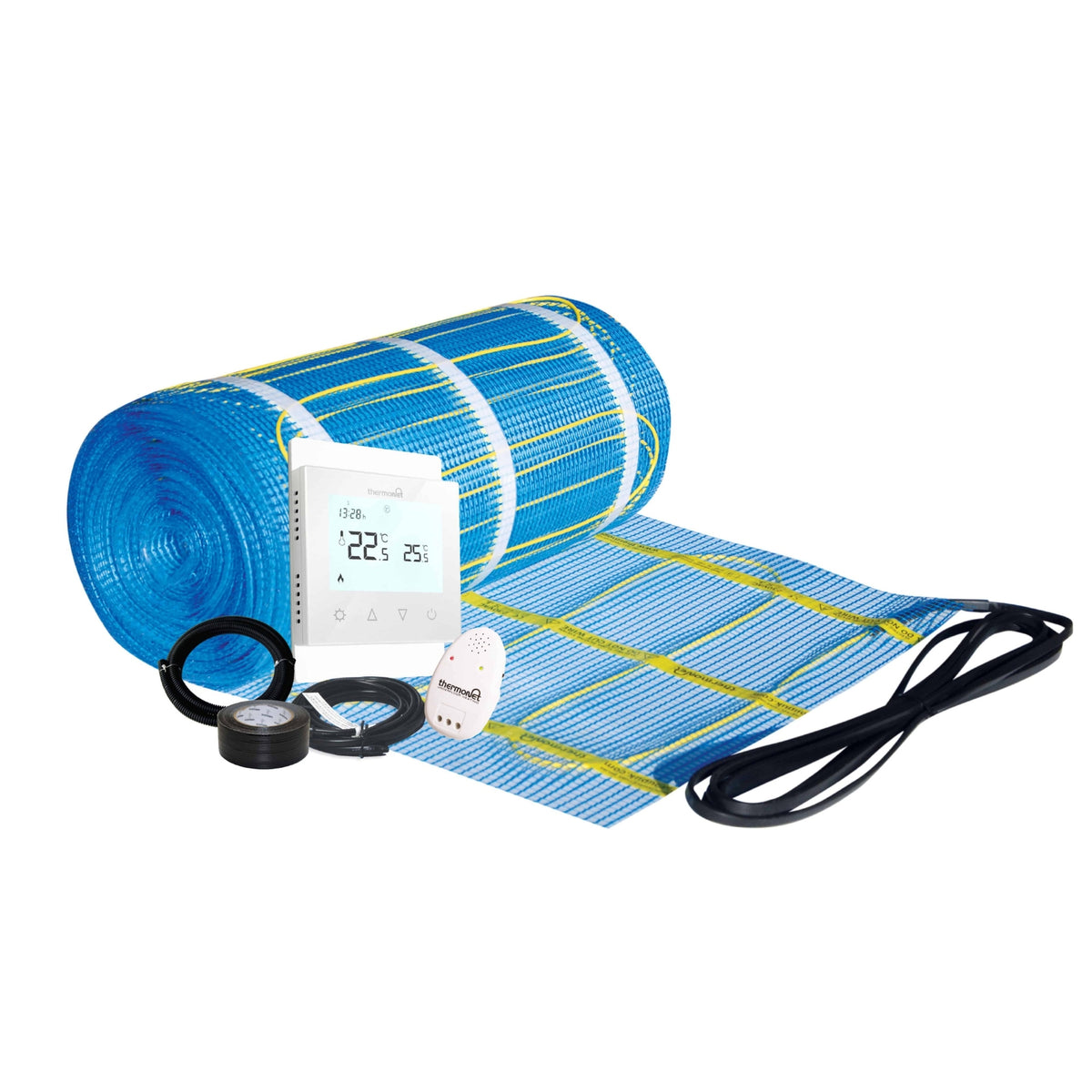

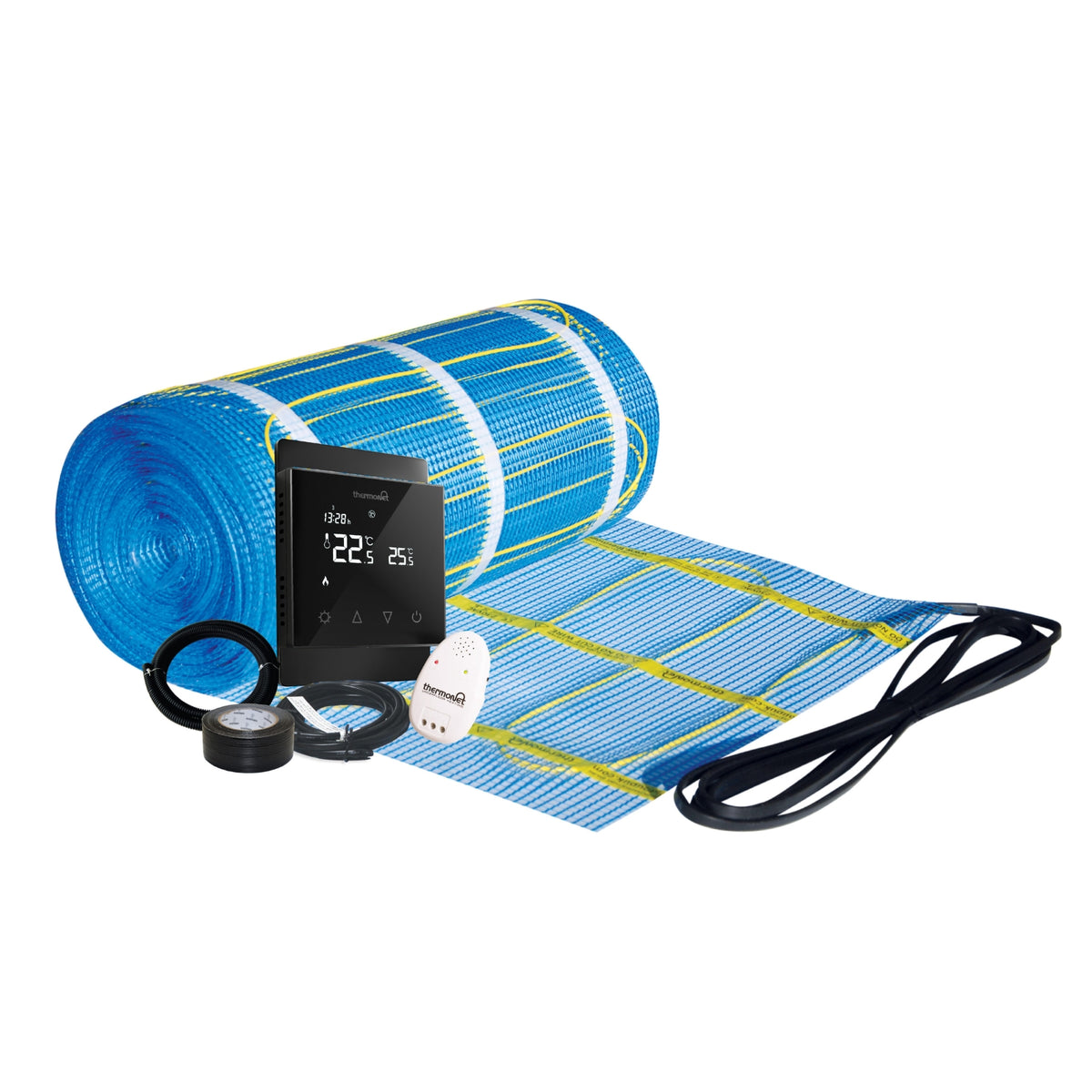

- Complete kit with the Thermonet mat, programmable thermostat, floor sensor, sensor conduit, cable monitor and guide
- Programmable thermostat means the floor is warm when you get up and off when the room's empty; step up to the dual controller kit if you also want to run a heated towel rail from the same plate
- Kits from 1 to 10 square metres, so you pay to heat the floor you actually walk on
- TwistedTwin 3.5mm cable construction for a longer lasting cable with zero electromagnetic field

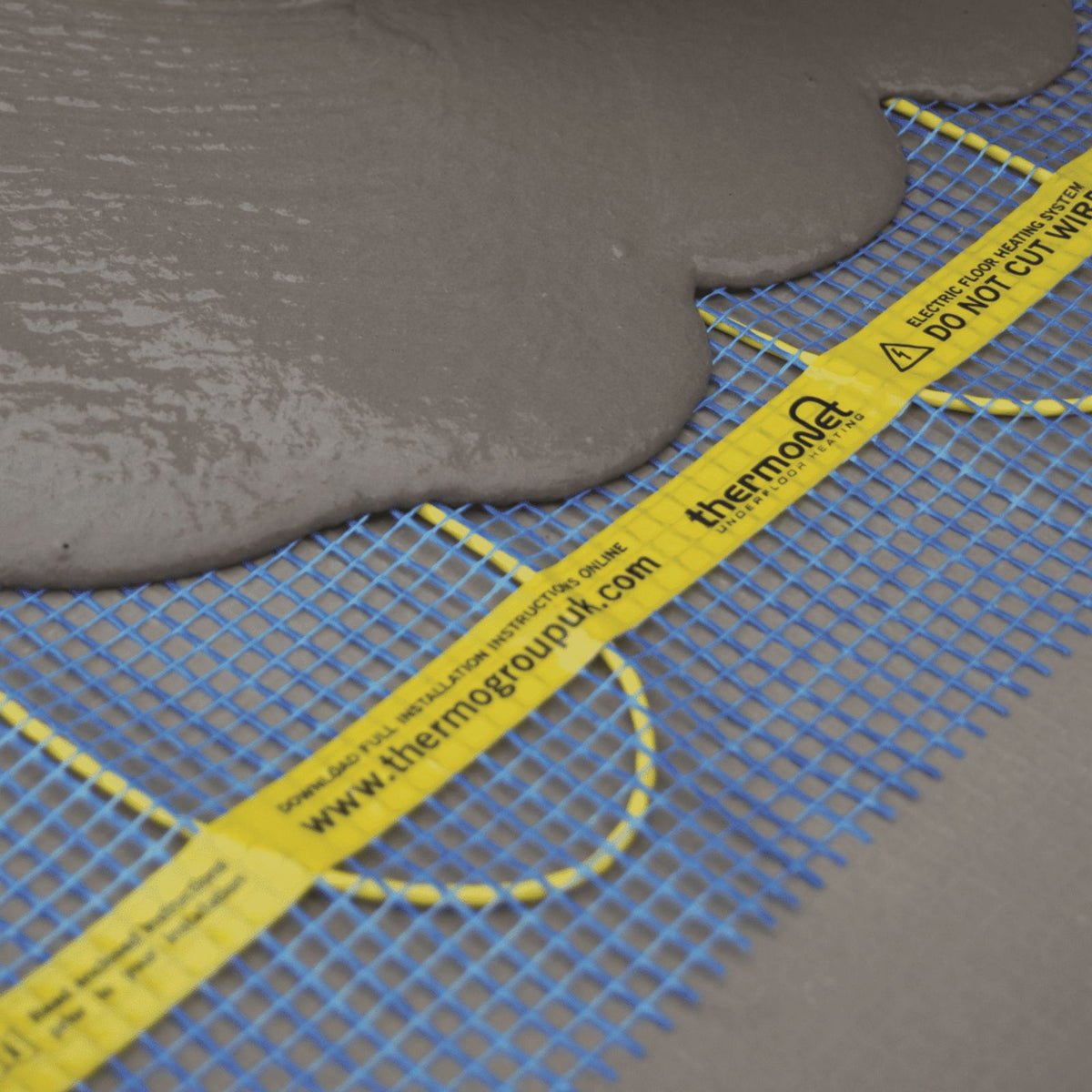

- Installed wire-side-down, so the hard wearing mesh protects the cable during the rest of the build
- Suits screeds of 20mm to 50mm or straight under tiles, runs to a maximum of 28 degrees, IP68 rated
- Supported by a lifetime system warranty, plus 3 years on the thermostat
Specifications
Width: 500mm
Heated width: 430mm
Thickness: 3.5mm
Max. temperature: 28°C
Protection rating: IP68
Wattage: 200W/m²
Conductor type: Single ended
Cold tail length: 5m
Warranty: Lifetime on heating mat and 3 years on thermostat
Specifications
Greater efficiency can also be achieved by including by:
- Including a layer of insulation
- Splitting the heating into different zones
- Using a programmable thermostat to only have the heating on when you need it
There is a number of factors that will influence the efficiency and the running costs of your underfloor heating. This includes:
- The set temperature
- The size and design of the room/home
- Level of insulation
- External temperatures
- Flooring products used
- Your electricity tariff
- Length of time the floor heating is on
- If there is any other heat sources in the room
To get an estimated running cost use Thermogroup's running costs calculator.
FAQ's
Click here to see Why Underfloor Heating is a must for your bathroom and to see all of the answers to your questions.
What's In The Box
- Thermonet 200W/m² Mat
- Programmable Thermostat
- Floor Temperature Sensor
- Sensor Conduit
- Cable Monitor
- Installation Guide & Warranty Form
Downloads
Download the specification sheet below:
Thermogroup Underfloor Heating 200W/m² Full Kit
Download the installation instructions below:
Thermogroup Underfloor Heating 200W/m² Full Kit
