Thermogroup Thermowire Underfloor Heating Loose Wire Cable Kit and 5245 Dual Thermostat

SKU 101502TD
Original price RRP $695
Current price $545
Add to wishlist

0 In Stock*

July Special Offer!

Boost your underfloor heating performance and save with 25% off Thermogroup Econoboard Thermal Insulation Board packs. Improve the efficiency of your Underfloor Heating by up to 50% through preventing downward heat loss and reducing your heat up times. Offer ends Midnight 1st August.

Thermowire is the traditional Underfloor Heating cable kit solution designed for installation in small, awkward areas.
Thermowire cables include the most advanced Electric Underfloor Heating cable available covered with our lifetime warranty. The cable is provided with black cloth tape which is used for securing the cable to the substrate.
The kit includes the heating cable, our dual controller for setting your Underfloor Heating schedule & temperature control as well as controlling your Heated Towel Rail, a floor sensor & conduit and a mat monitor.
The loose wire cable provides flexibility in cable spacing and allows for working around fixtures in the room. For under tile applications, we recommend 150w/m² outside the bathroom and for the bathroom, either below the tiles or the screed, we recommend 200w/m².
  • Thermowire underfloor heating standard controller kit ready for installation
  • The Dual Thermostat allows you to control your underfloor heating and an additional appliance, such as a heated towel rail, on individual schedules from the single thermostat.
  • The loose wire format offers flexibility to fit around awkward spaces and to adjust your cable spacing to achieve desired heat output
  • Kit items include Thermowire cable,  black cloth tape, programmable thermostat (5220A) and installation guide
  • Choose from 1 square metre through to 18 square metre kits
  • Max temperature 28 degrees
  • Protection rating IP68. Safe for use in bathrooms, showers and other wet room locations without any electrical hazard
  • The cable system is only 3.5mm thick with a low profile 4mm cold tail which can be concealed within the tile adhesive layer
  • The system comes with a lifetime warranty plus a 3 year warranty on thermostats
  • Made in Germany
  • View product specifications here



Running Costs

Greater efficiency can also be achieved by including by:

  • Including a layer of insulation
  • Splitting the heating into different zones
  • Using a programmable thermostat to only have the heating on when you need it

There is a number of factors that will influence the efficiency and the running costs of your underfloor heating. This includes:

  • The set temperature
  • The size and design of the room/home
  • Level of insulation
  • External temperatures
  • Flooring products used
  • Your electricity tariff
  • Length of time the floor heating is on
  • If there is any other heat sources in the room


To get an estimated running cost use Thermogroup's running costs calculator.


FAQ's

Click here to see Why Underfloor Heating is a must for your bathroom and to see all of the answers to your questions.

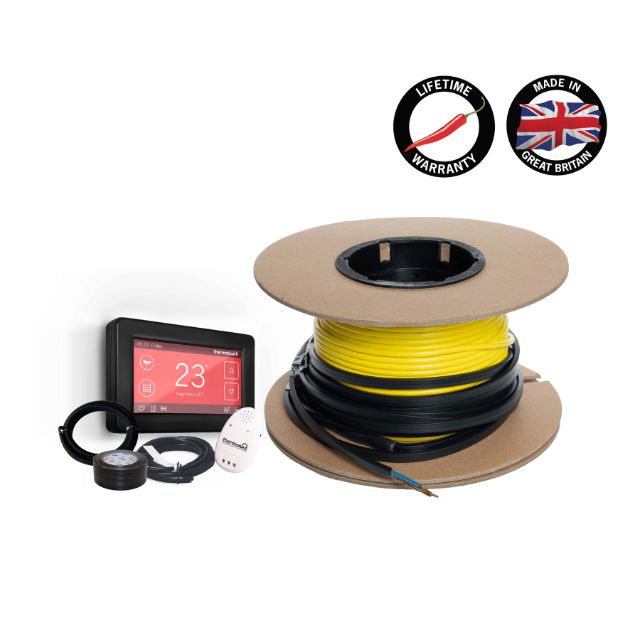

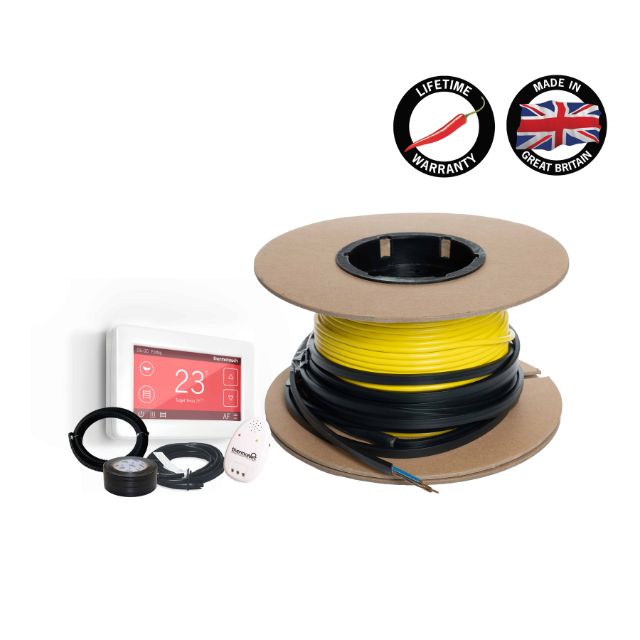

What's In The Box

Thermowire loose wire underfloor heating cable
Programmable dual thermostat
Floor temperature sensor
Sensor conduit
Cloth installation tape
Installation guide & warranty form
