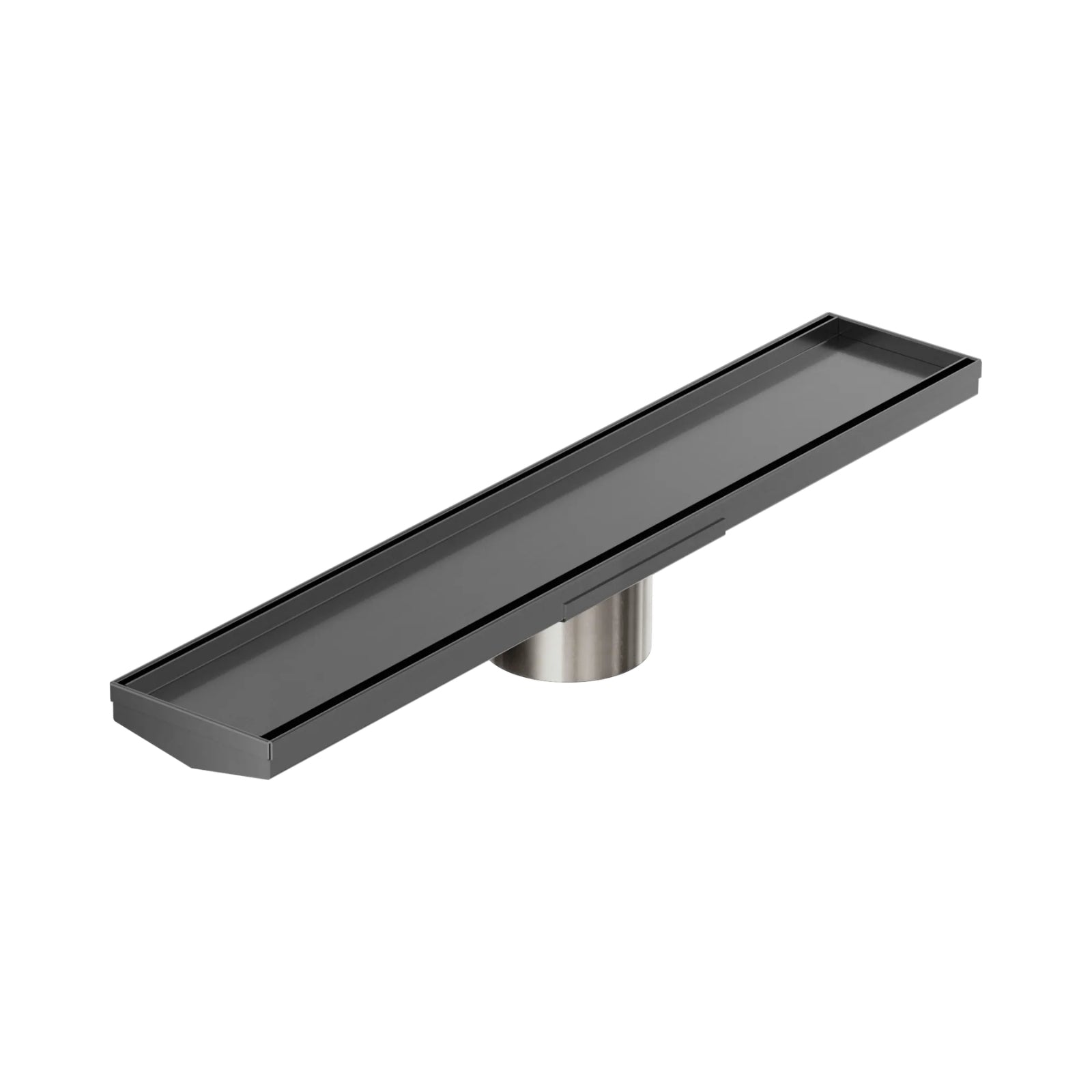

Nero Tile Insert V Channel 600x106mm Floor Grate 90mm Outlet Gun Metal
SKU: NRFG004HSGM_KIT
Wastes Traps Grates by Nero Tapware
The Nero Tile Insert V Channel Floor Grate in gun metal offers a clean, streamlined drainage solution designed to integrate neatly with tiled surfaces. Measuring 600 x 106mm with a 90mm outlet, it features a tile insert design that allows your chosen tile to sit within the grate for a cohesive finish. The V channel form supports water flow while maintaining a low-profile appearance, making it a considered choice for modern bathrooms where a subtle, integrated look is preferred.
- Fits 100mm puddle flange for easy integration
- Suitable for tiles with a thickness of less than 10mm
- Durable 304 stainless steel construction ensures long-lasting performance.
- Separate waste outlet and grate design provides greater installation flexibility.
- V-channel profile enhances water flow speed and drainage efficiency
- Available in 5 premium finishes to match various bathroom styles.
- Note: Outlet and grate are packed separately. Holesaw not included. You can add a hole saw to your order from the drop down box if required
- Supported by a 10 year warranty
Specifications
Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD
Overall length: 600mm
Overall width: 106mm
Required Hole Size: 90mm
Warranty: 10 Years
Spec Sheet
Download the specification sheet below:
Nero Tile Insert V Channel 600x106mm Floor Grate 90mm Outlet Gun Metal
What's In The Box
1 x Floor Grate, 1x Outlet, Installation Instructions
