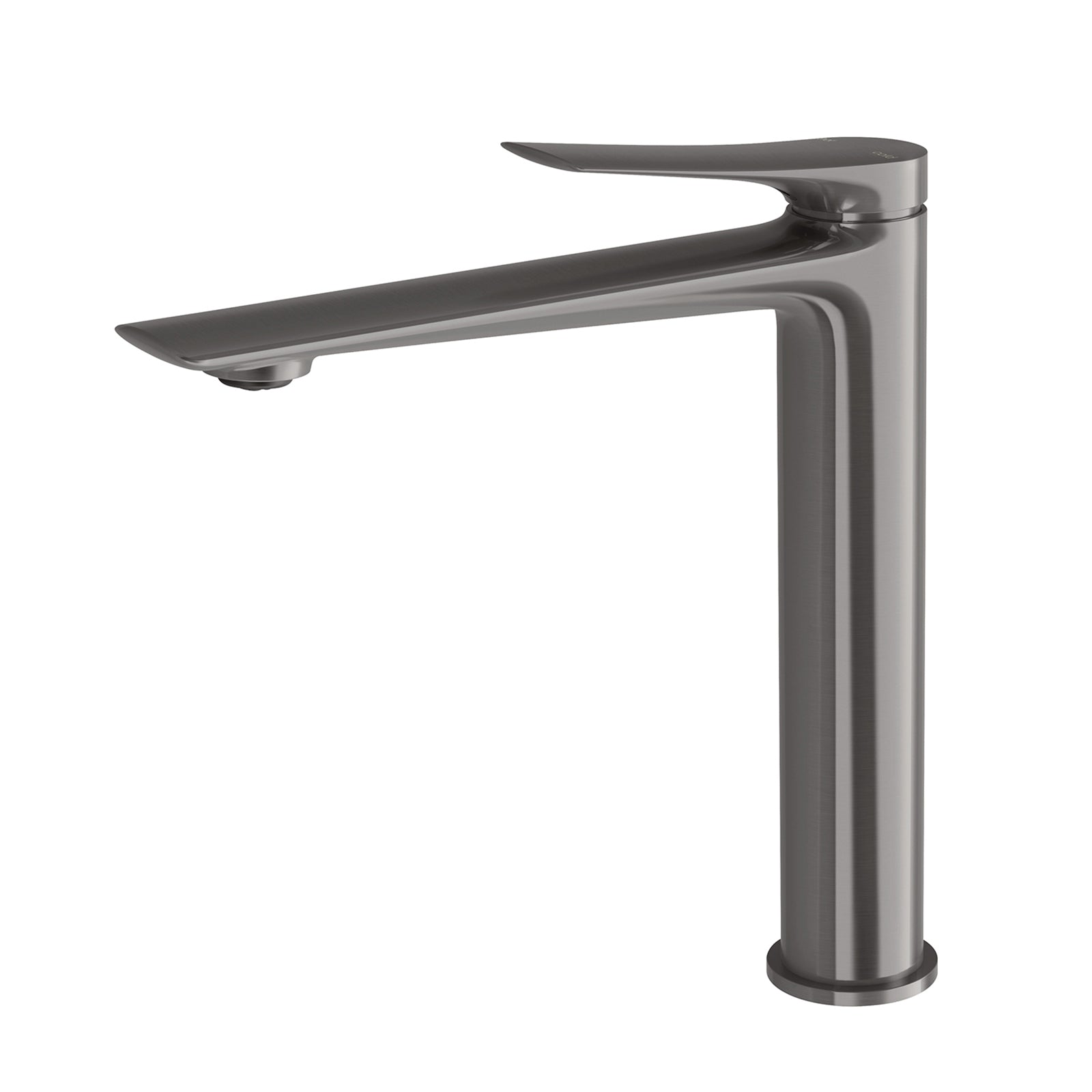

Phoenix Kusabi Vessel Mixer - Brushed Carbon
SKU: 138-7900-31-1
Built taller than a standard basin mixer, the Kusabi vessel mixer is proportioned for an above-counter bowl, where a low spout would not clear the rim. The aerator sits recessed up inside the spout so the underside stays clean, and a single lever handles temperature and flow. Brushed Carbon reads as a dark, muted grey. It shares the collection's squared Japandi lines and its SwitchMix compatibility, so the mixer can be changed for another Phoenix design or finish down the track. The range holds a 2025 iF Design Award.
- Extended body height clears the rim of an above-counter basin, where a standard mixer would sit too low.
- The aerator sits recessed up inside the spout, so there is no protruding nozzle to interrupt the line.
- 28mm ceramic disc cartridge carries a 15 year warranty.
- 6 star WELS rating at 4.5 litres a minute.
- Made from lead free brass.
- SwitchMix compatible, so the design or finish can change later without redoing the plumbing.
Specifications
WELS water efficiency: 6 star WELS rated
WELS water consumption: 4.5lt/min
WELS registration number: T44012
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: PVD
Operating mechanism: 28mm ceramic cartridge
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa

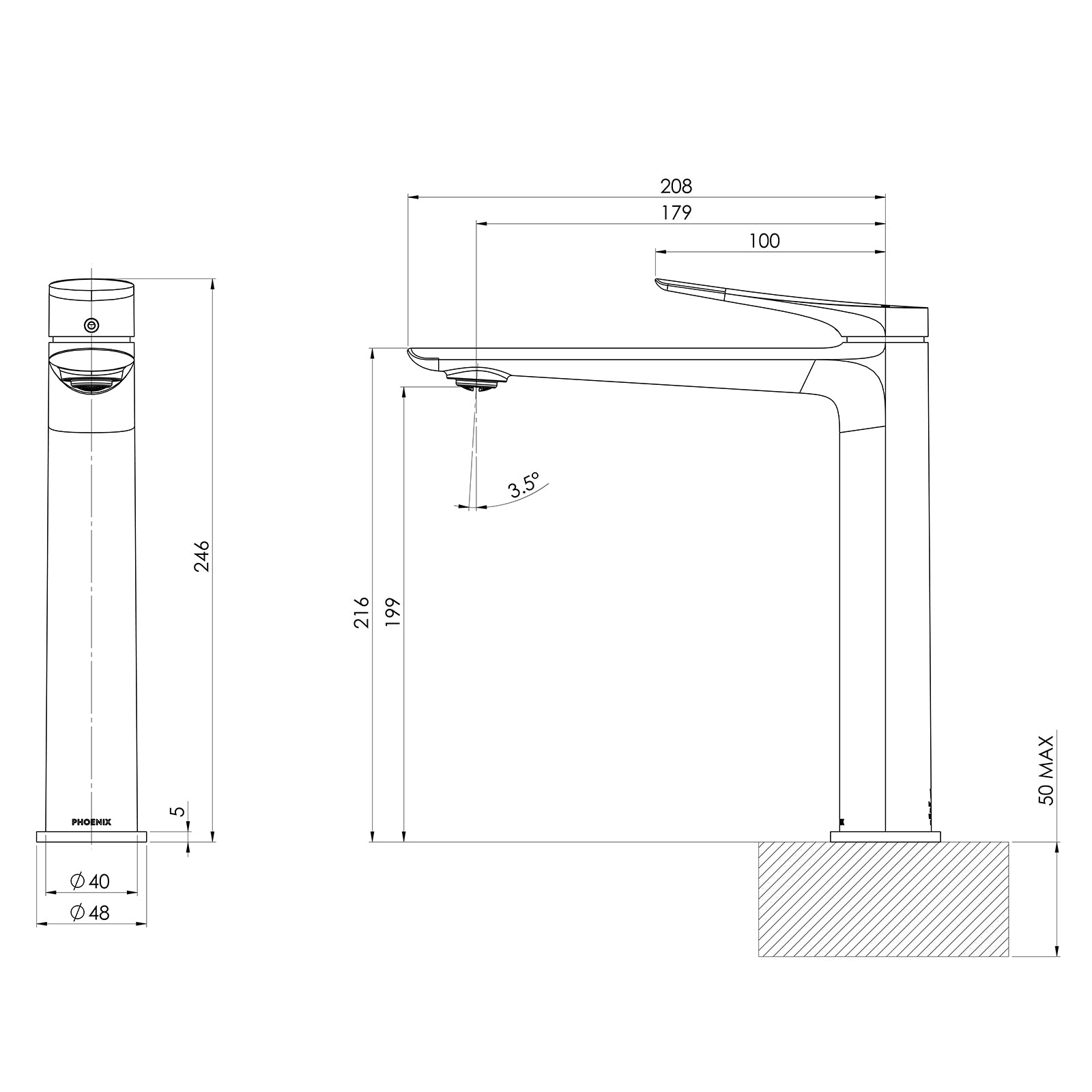

Overall height: 246mm
Height to spout: 199mm
Spout reach: 179mm
Spout function: Fixed
Overall depth: 208mm
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty
What's In The Box
1x Vessel Mixer, 1x Installation kit, 1x Installation instructions, 1x Warranty card
Downloads
Download the specification sheet below:
Phoenix Kusabi Vessel Mixer - Brushed Carbon
Download the installation instructions below:
