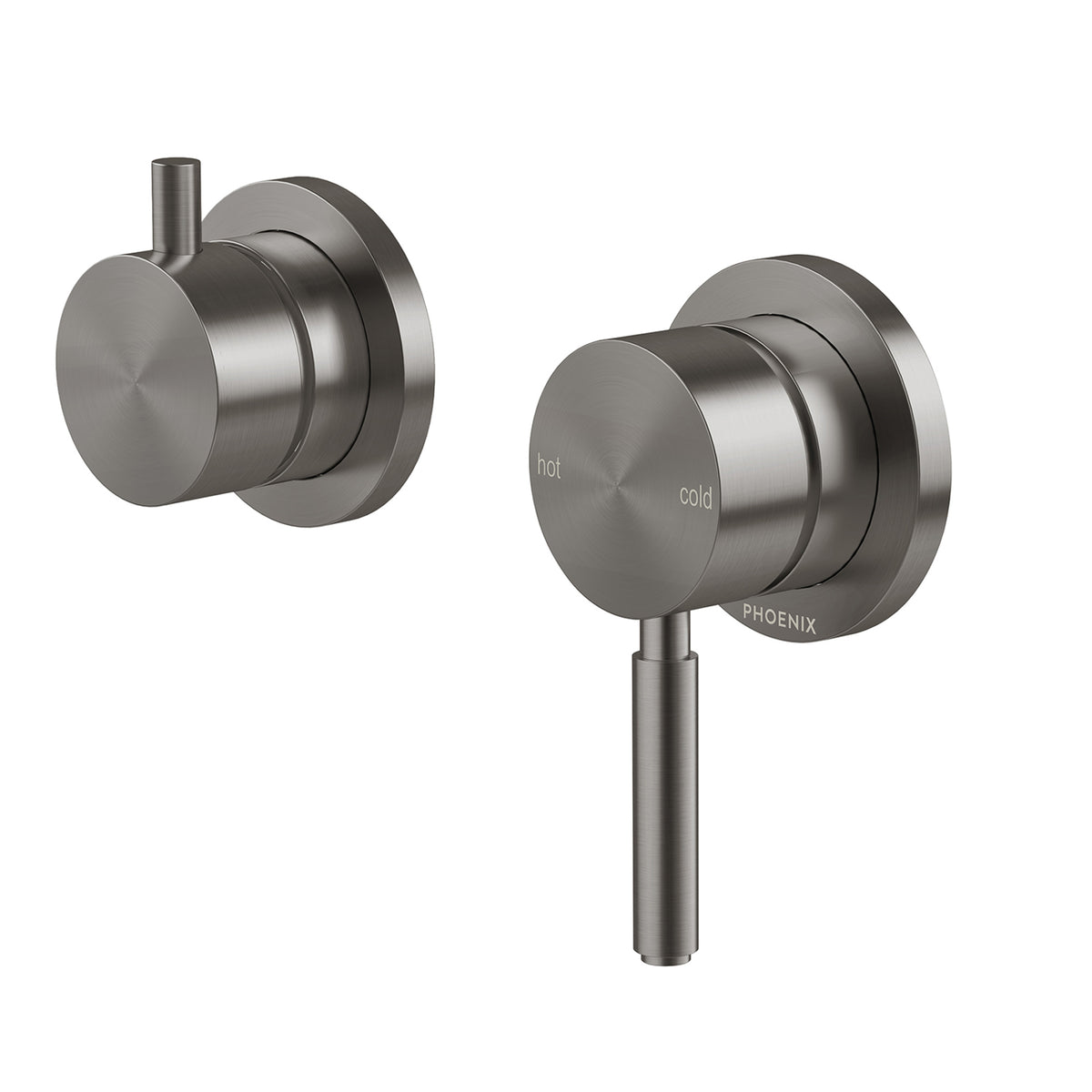

Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer - Brushed Carbon
SKU: 146-2910-31-1
This is the complete Vivid MKII shower and bath diverter: the in wall rough-in kit and the fit-off kit that shows, supplied together. One control handles temperature and flow while a ceramic 180 degree rotary diverter switches between two connected outlets. The SwitchMix patented cartridge sits behind the wall, so the visible finish can be changed later without going back into the tiling. Substantial backplates and the stepped pin detail give it the assured presence the collection is built around. Brushed carbon keeps the shape dark and low key.
- Everything for the job in one box: the rough-in kit that goes in the wall and the fit-off kit that shows, rather than the fit-off half on its own.
- One ceramic 180 degree rotary diverter moves water between two connected outlets, so shower and bath run off the same control.
- The SwitchMix patented cartridge stays in the wall, which means a change of finish later does not mean opening the tiling.
- Any Vivid MKII Shower / Bath Diverter Mixer will fit the same rough-in, so you are not locked into today's choice.
- Lead free brass body.
- The 15 year cartridge warranty covers the working part, not just the visible hardware.

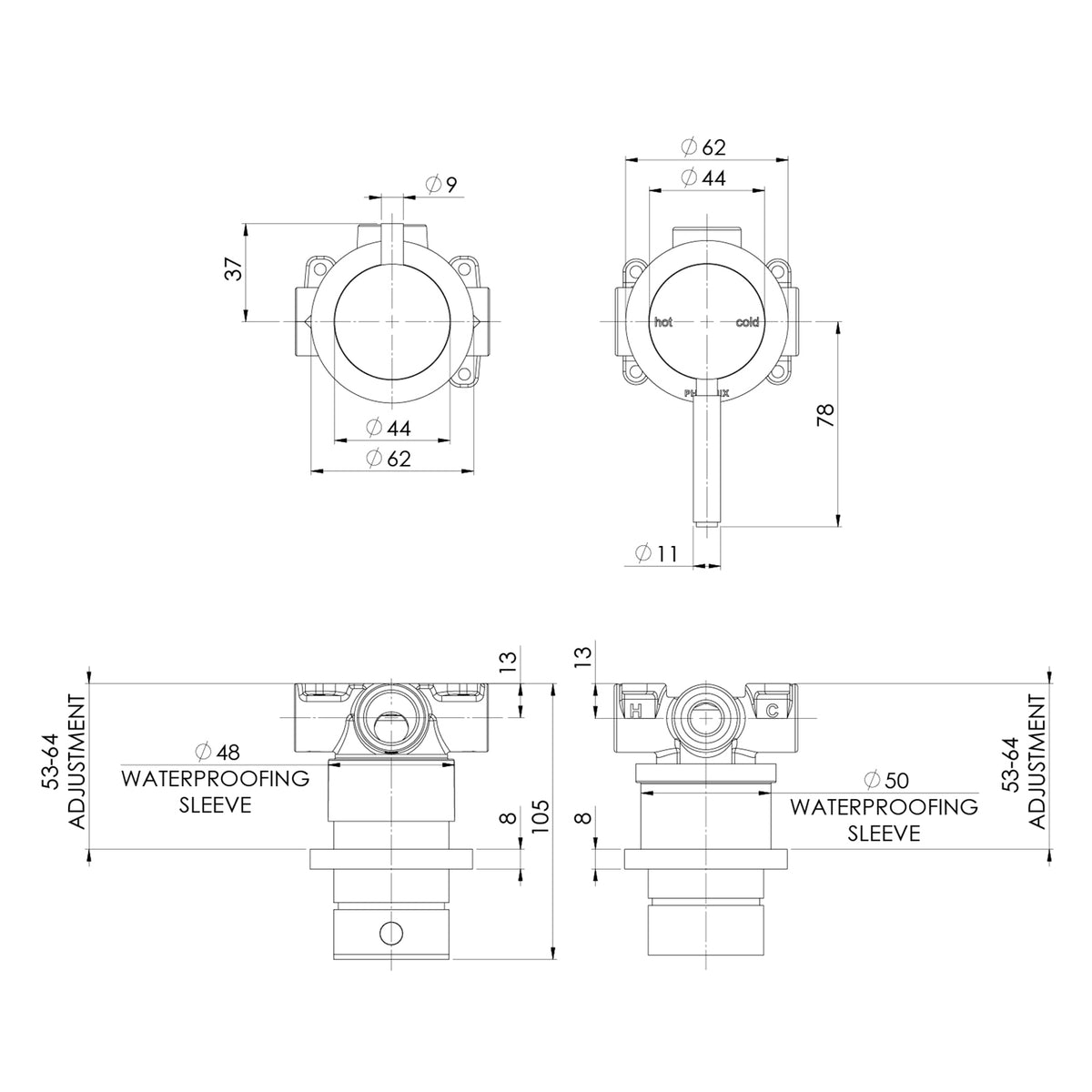

Specifications
WELS water efficiency: N/A
WELS water consumption: N/A
WELS registration number: N/A
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: PVD
Operating mechanism: Ceramic 180° rotary diverter
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa
Overall height: 109mm
Spout function: Fixed
Overall depth: 105mm
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 1 Year Labour Warranty
What's In The Box
1x Shower / Bath Diverter Mixer, 1x Installation kit, 1x Installation instructions, 1x Warranty card
Downloads
Download the specification sheet below:
Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer - Brushed Carbon
Download the installation instructions below:
Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer - Brushed Carbon
