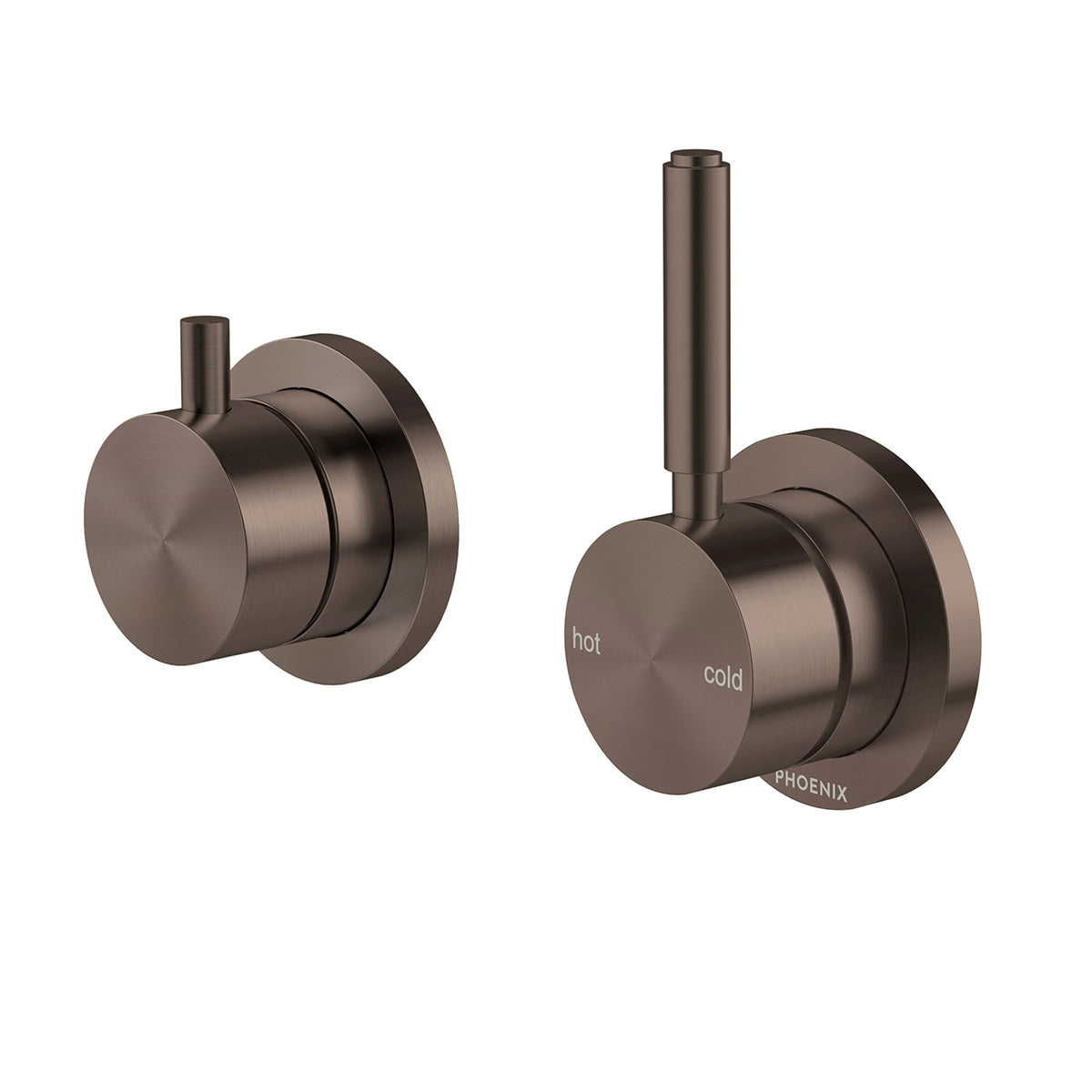

Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer Pin Up - Brushed Bronze

The pin up version of the Vivid MKII shower and bath diverter, supplied complete with both the in wall rough-in kit and the fit-off kit. A single control sets temperature and flow, and a ceramic 180 degree rotary diverter moves water between two connected outlets. The SwitchMix patented cartridge means the visible parts can be updated later without disturbing the wall. Machined handle, stepped pin and a substantial backplate carry the collection's heavier detailing. Brushed bronze, new to the range, is the deepest and warmest of the five finishes.

• Everything for the job in one box: the rough-in kit that goes in the wall and the fit-off kit that shows, rather than the fit-off half on its own.
• Ceramic 180 degree rotary diverter moves water between two connected outlets, so shower and bath share one control.
• The SwitchMix patented cartridge stays in the wall, so changing the finish later does not mean opening the tiling.
• Any Vivid MKII Shower / Bath Diverter Mixer will fit the same rough-in, so the look can change without the plumbing changing.
• Lead free brass body.
• The 15 year cartridge warranty covers the working part, not just the visible hardware.

Specifications

WELS water efficiency: N/A
WELS water consumption: N/A
WELS registration number: N/A
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: PVD
Operating mechanism: Ceramic 180° rotary diverter
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa

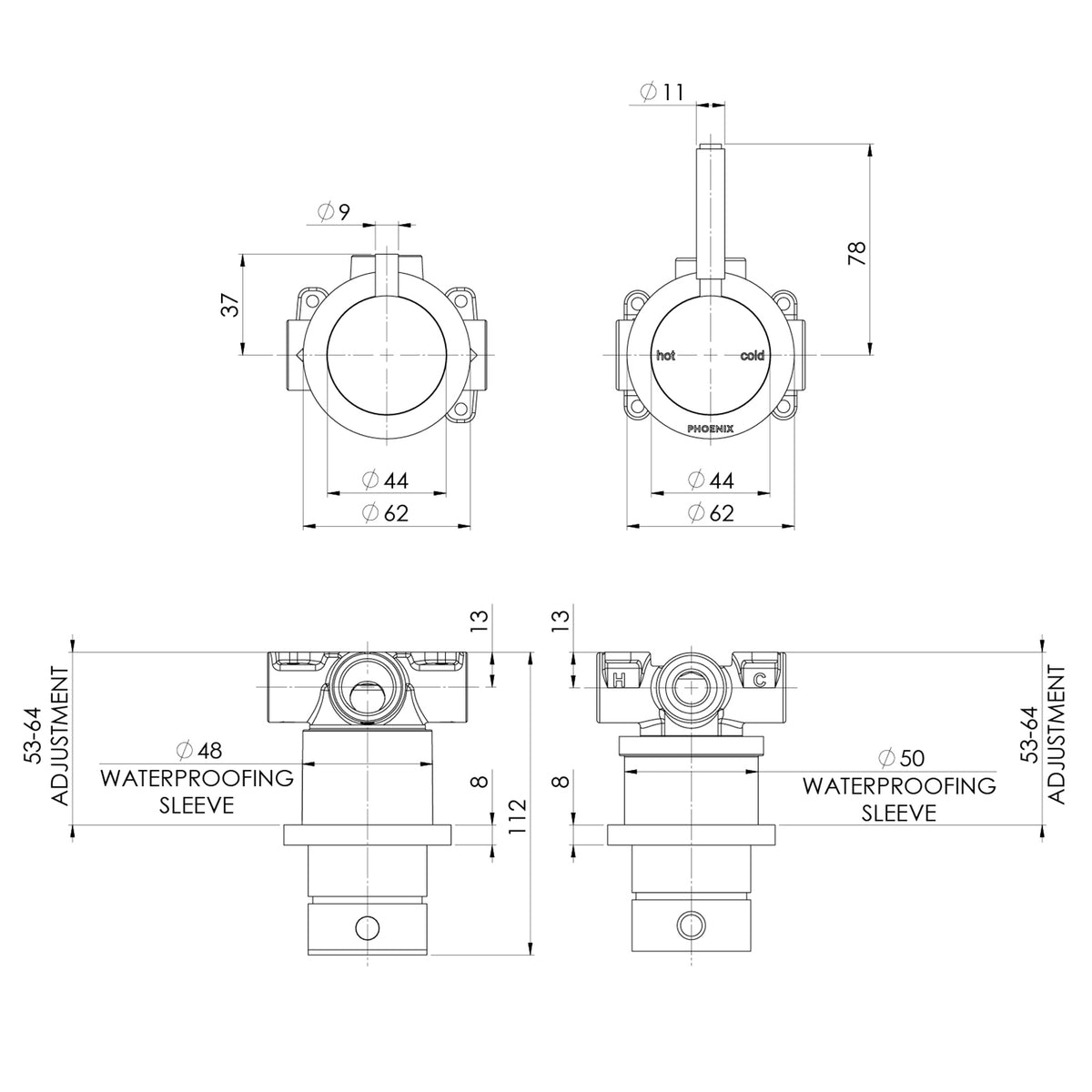

Overall height: 109mm
Spout function: Fixed
Overall depth: 112mm
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty

What's In The Box

1x Shower / Bath Diverter Mixer Pin Up, 1x Installation kit, 1x Installation instructions, 1x Warranty card

Downloads

Download the specification sheet below:

Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer Pin Up - Brushed Bronze

Download the installation instructions below:

Phoenix Vivid MKII SwitchMix Shower / Bath Diverter Mixer Pin Up - Brushed Bronze
