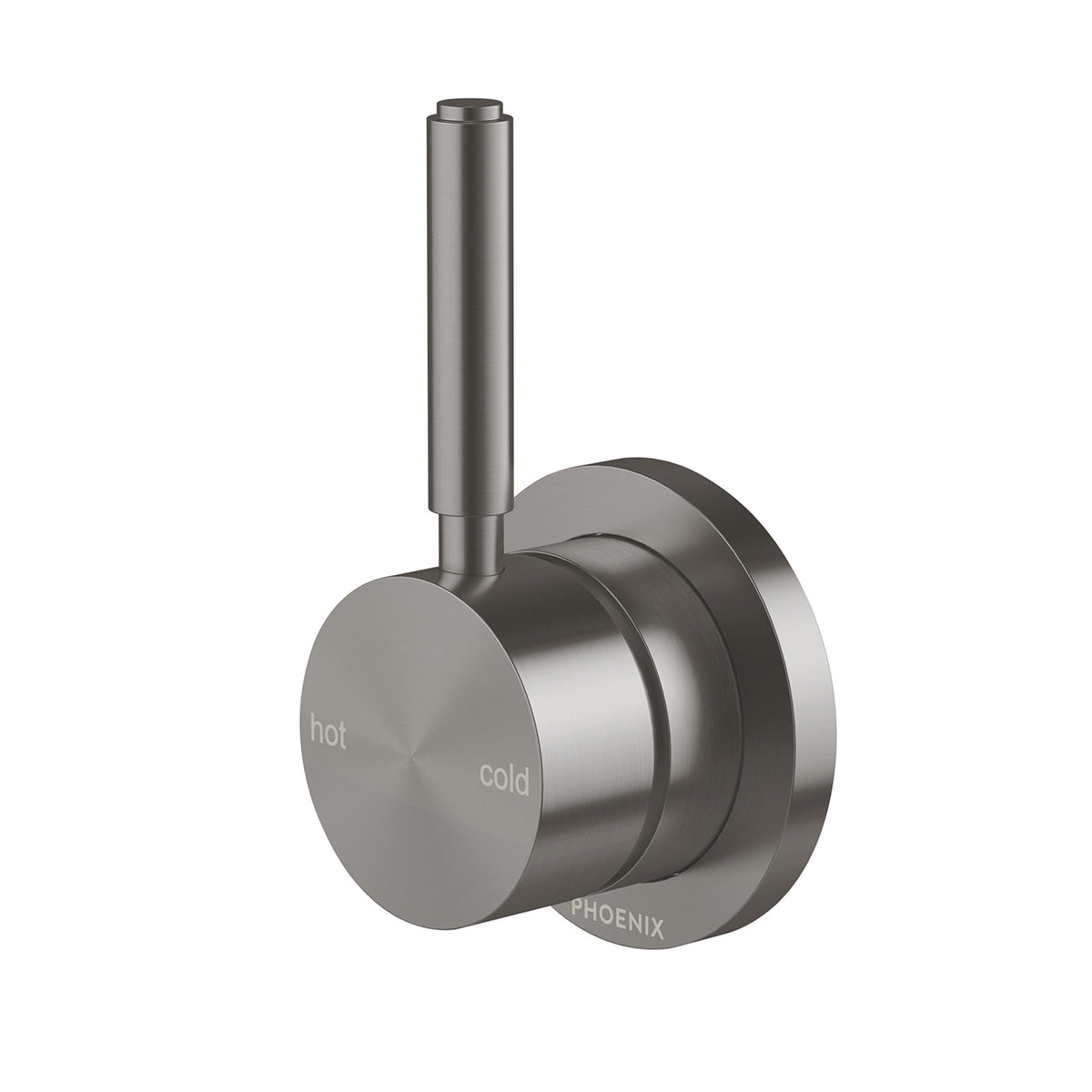

Phoenix Vivid MKII SwitchMix Shower / Wall Mixer Pin Up - Brushed Carbon
SKU: 146-2802-31-1
The pin up version of the Vivid MKII shower mixer, supplied complete with both the in wall rough-in kit and the fit-off kit that shows. One lever handles temperature and flow against a stainless steel backplate, detailed with the machined handle and stepped pin that run across the collection. The SwitchMix patented cartridge allows the visible design or finish to change later without reopening the wall. Brushed carbon keeps the shape dark and low key.
- Everything for the job in one box: the rough-in kit that goes in the wall and the fit-off kit that shows, rather than the fit-off half on its own.
- The SwitchMix patented cartridge stays in the wall, so a change of design or finish later does not mean opening the tiling.
- Works with any SwitchMix compatible Phoenix collection, so you are not locked into Vivid MKII if your taste moves on.
- Stainless steel backplate rather than a pressed cover, which is what gives the mixer its solid seat against the wall.
- Lead free brass body.
- The 15 year cartridge warranty covers the working part, not just the visible hardware.
Specifications
WELS water efficiency: N/A
WELS water consumption: N/A
WELS registration number: N/A
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: PVD
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa
Overall height: 109mm
Spout function: Fixed
Overall depth: 111mm
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty
What's In The Box
1x Shower / Wall Mixer Pin Up, 1x Installation kit, 1x Installation instructions, 1x Warranty card
Downloads
Download the specification sheet below:
Phoenix Vivid MKII SwitchMix Shower / Wall Mixer Pin Up - Brushed Carbon
Download the installation instructions below:
Phoenix Vivid MKII SwitchMix Shower / Wall Mixer Pin Up - Brushed Carbon
