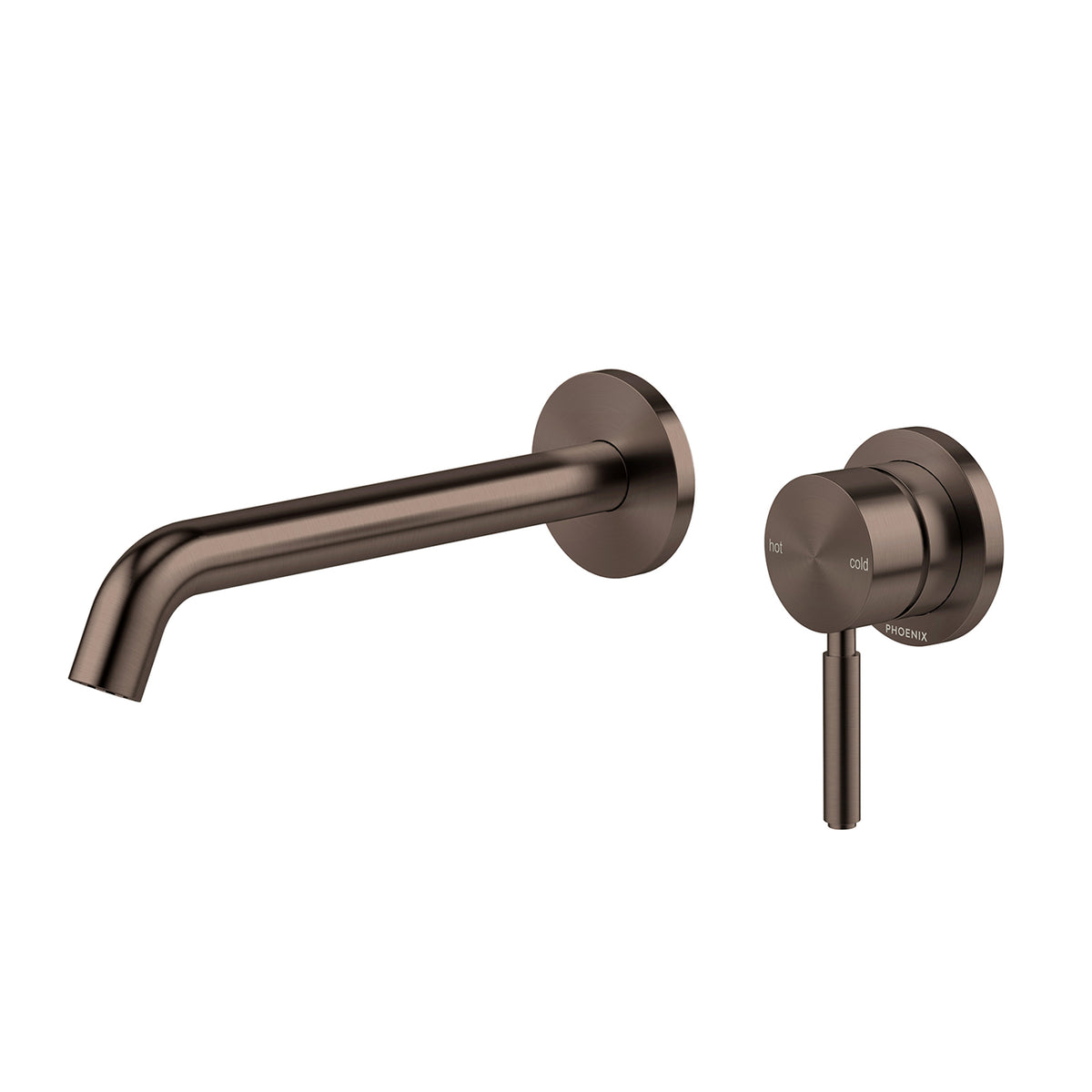

Phoenix Vivid MKII SwitchMix Wall Basin / Bath Mixer Set 200mm - Brushed Bronze
SKU: 146-2810-24-1
A complete wall mounted set for a basin or bath, with the in wall rough-in kit and the visible fit-off kit supplied together. The 200mm outlet pushes into place on assembly, and the mixer sits on the substantial backplate that gives Vivid MKII its weight on the wall. The SwitchMix patented cartridge stays behind the tiles, so the visible design or finish can be changed later for any SwitchMix compatible collection. Brushed bronze, new to the range, is the deepest and warmest of the five finishes.
- Everything for the job in one box: the rough-in kit that goes in the wall and the fit-off kit that shows, rather than the fit-off half on its own.
- Push fit spout goes on without threading, which keeps the fit-off stage quick and the joint neat.
- The SwitchMix patented cartridge stays in the wall, so a change of design or finish later does not mean opening the tiling.
- Works with any SwitchMix compatible Phoenix collection, so you are not locked into Vivid MKII if your taste moves on.
- 6 star WELS rating at 4 litres a minute keeps water use down at the basin.
- Lead free brass body means nothing leaches into the water you wash and clean your teeth with.
- Supported by a 15 year warranty
Specifications
WELS water efficiency: 6 star WELS rated
WELS water consumption: 4lt/min
WELS registration number: T49345
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: PVD
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa
Spout reach: 199mm
Spout function: Fixed
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty
What's In The Box
1x Wall Basin / Bath Mixer Set 200mm, 1x Installation kit, 1x Installation instructions, 1x Warranty card
Downloads
Download the specification sheet below:
Phoenix Vivid MKII SwitchMix Wall Basin / Bath Mixer Set 200mm - Brushed Bronze
Download the installation instructions below:
Phoenix Vivid MKII SwitchMix Wall Basin / Bath Mixer Set 200mm - Brushed Bronze
