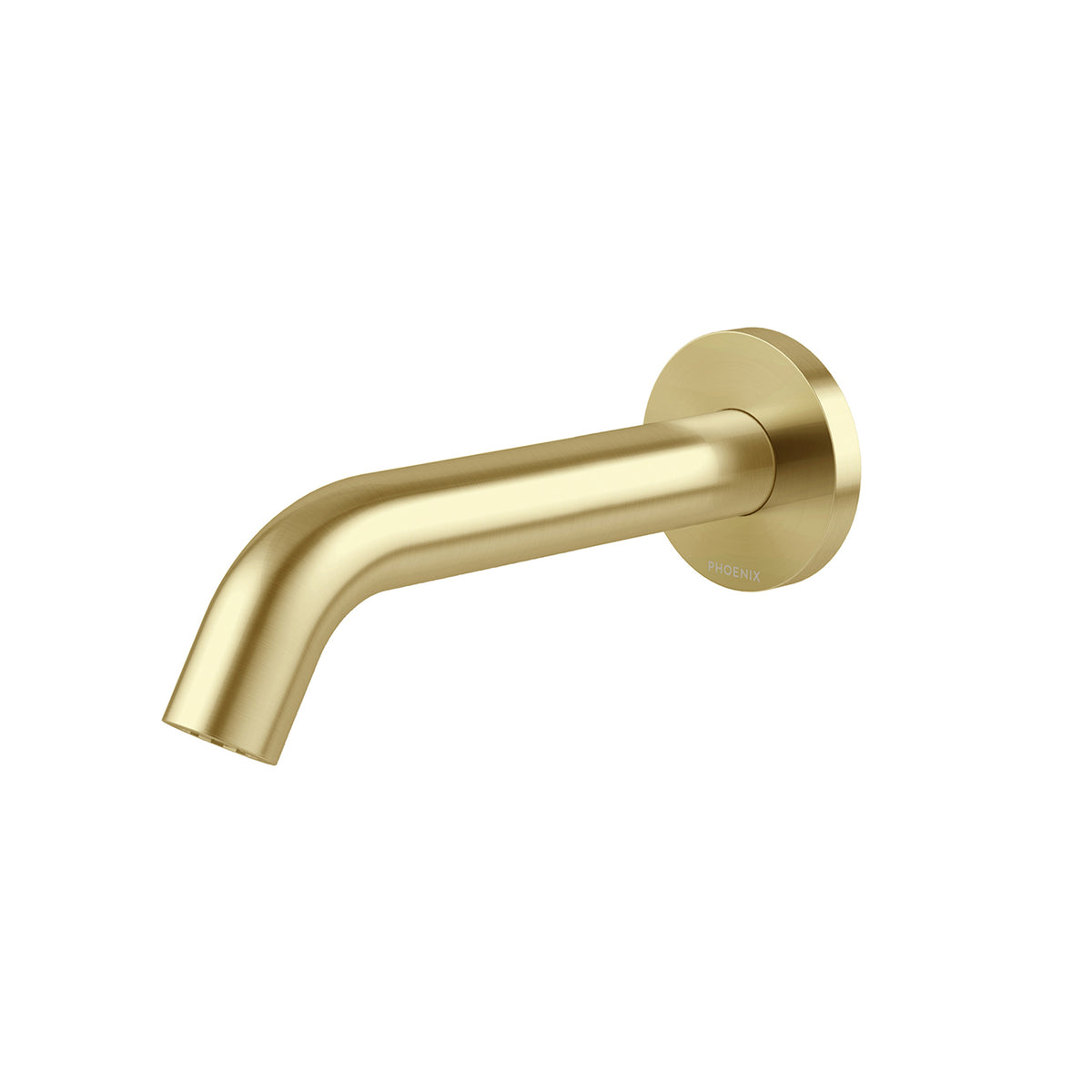

Phoenix Vivid MKII Wall Basin / Bath Outlet 160mm Curved - Brushed Gold

A curved wall outlet in the Vivid MKII language, projecting 160mm from the wall. The spout screws on rather than pushing into place, and a free flow aerator is supplied in the box for bath installations. Three outlet lengths are offered, so the reach can be matched to whatever sits below. This is the shortest of the three, for a basin close to the wall. Brushed gold gives the same form a warmer cast.

• The shortest of three outlet lengths in the range, so you can match the reach to a basin sitting close to the wall rather than overshooting it.
• A free flow aerator comes in the box, which means the same outlet suits a bath as well as a basin.
• Screw on spout, so the outlet can be taken off later without cutting into the wall.
• Lead free brass body means nothing leaches into the water you wash and clean your teeth with.
• 6 star WELS rating at 3.5 litres a minute.
• Supported by a 15 year warranty

Specifications

WELS water efficiency: 6 star WELS rated
WELS water consumption: 3.5lt/min
WELS registration number: T49330
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: PVD
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa

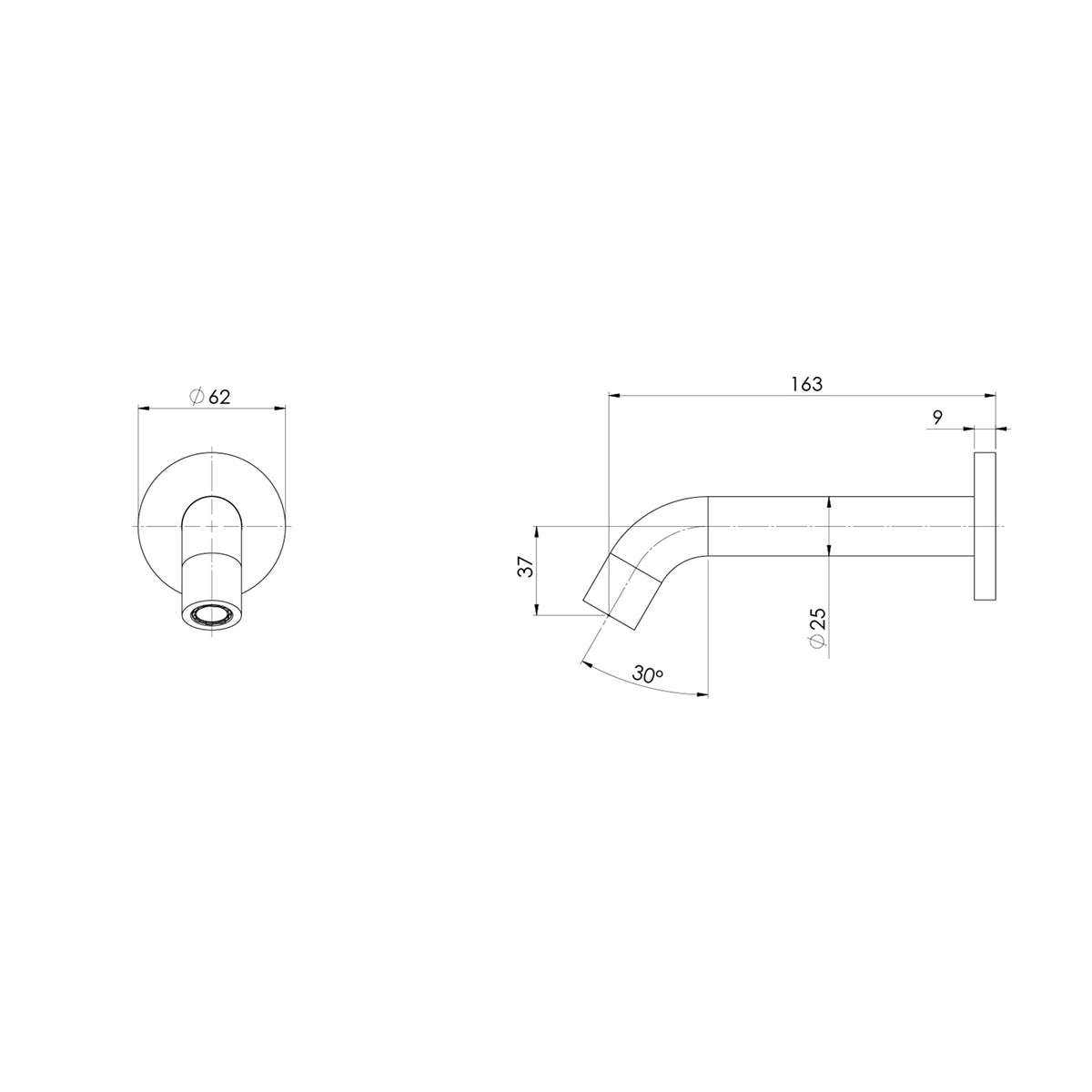

Spout reach: 163mm
Spout function: Fixed
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty

What's In The Box

1x Wall Basin / Bath Outlet 160mm Curved, 1x Installation kit, 1x Installation instructions, 1x Warranty card

Downloads

Download the specification sheet below:

Phoenix Vivid MKII Wall Basin / Bath Outlet 160mm Curved - Brushed Gold

Download the installation instructions below:

Phoenix Vivid MKII Wall Basin / Bath Outlet 160mm Curved - Brushed Gold
