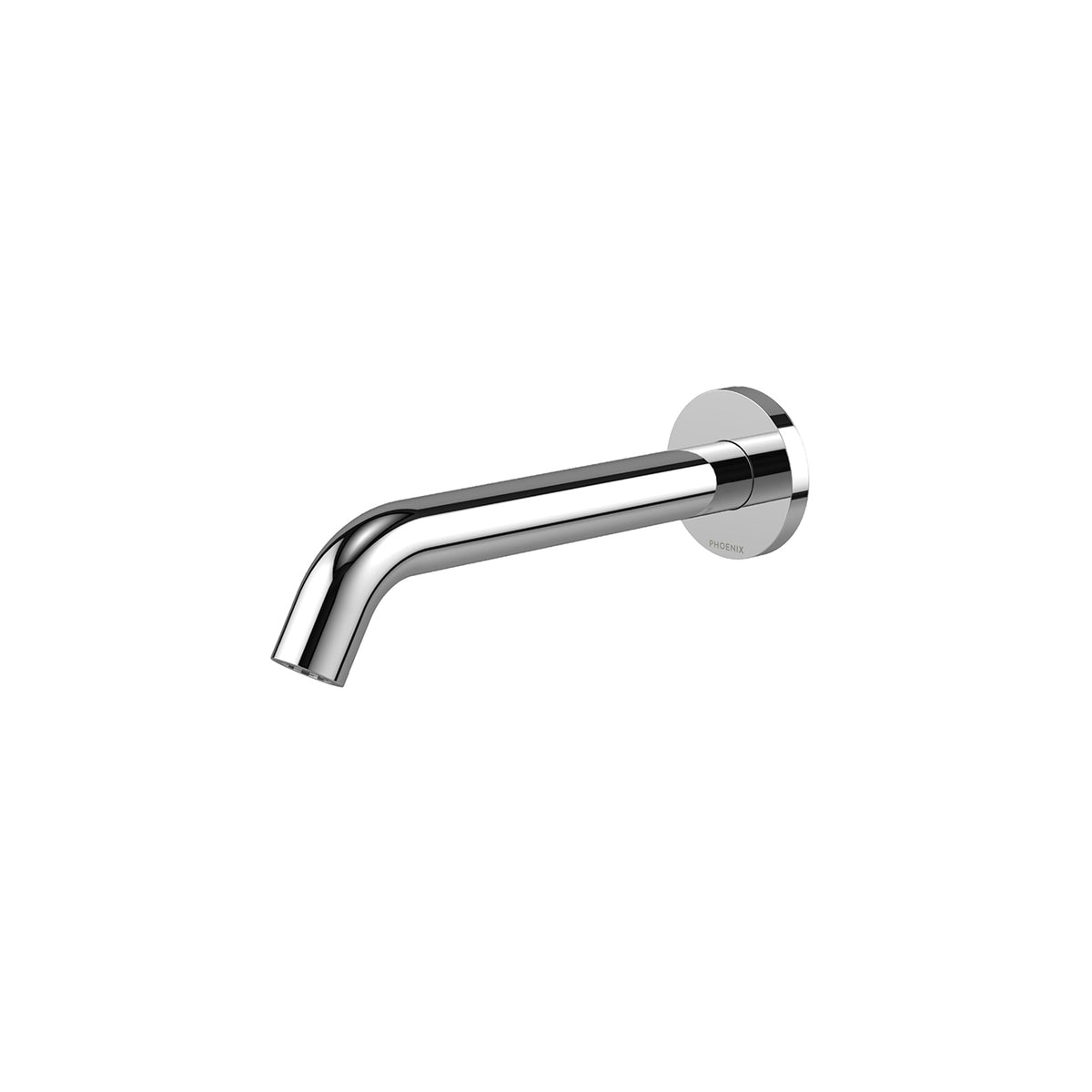

Phoenix Vivid MKII Wall Basin / Bath Outlet 200mm Curved - Chrome

A curved wall outlet in the Vivid MKII language, projecting 200mm from the wall. The spout screws on rather than pushing into place, and a free flow aerator is supplied in the box for bath installations. Three outlet lengths are offered across the range, so the reach can be matched to the basin or bath below. This is the middle length. The chrome finish keeps it bright and neutral next to other fittings.

• The middle of three outlet lengths in the range, which is the usual pick when a basin sits a little off the wall.
• A free flow aerator comes in the box, which means the same outlet suits a bath as well as a basin.
• Screw on spout, so the outlet can be taken off later without cutting into the wall.
• Lead free brass body means nothing leaches into the water you wash and clean your teeth with.
• 6 star WELS rating at 3.5 litres a minute.
• Supported by a 15 year warranty

Specifications

WELS water efficiency: 6 star WELS rated
WELS water consumption: 3.5lt/min
WELS registration number: T49331
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: Electroplating
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa

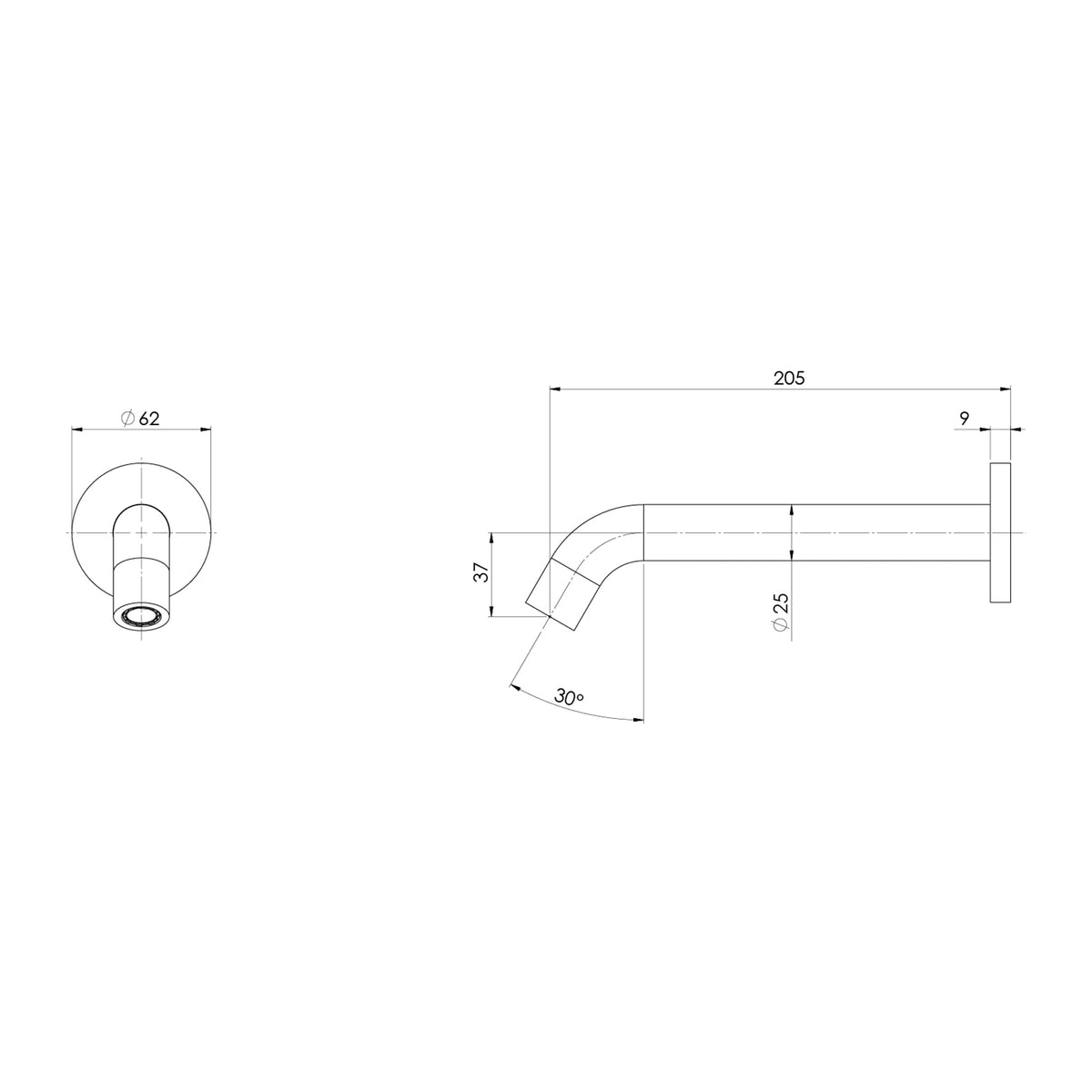

Spout reach: 205mm
Spout function: Fixed
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty

What's In The Box

1x Wall Basin / Bath Outlet 200mm Curved, 1x Installation kit, 1x Installation instructions, 1x Warranty card

Downloads

Download the specification sheet below:

Phoenix Vivid MKII Wall Basin / Bath Outlet 200mm Curved - Chrome

Download the installation instructions below:

Phoenix Vivid MKII Wall Basin / Bath Outlet 200mm Curved - Chrome
