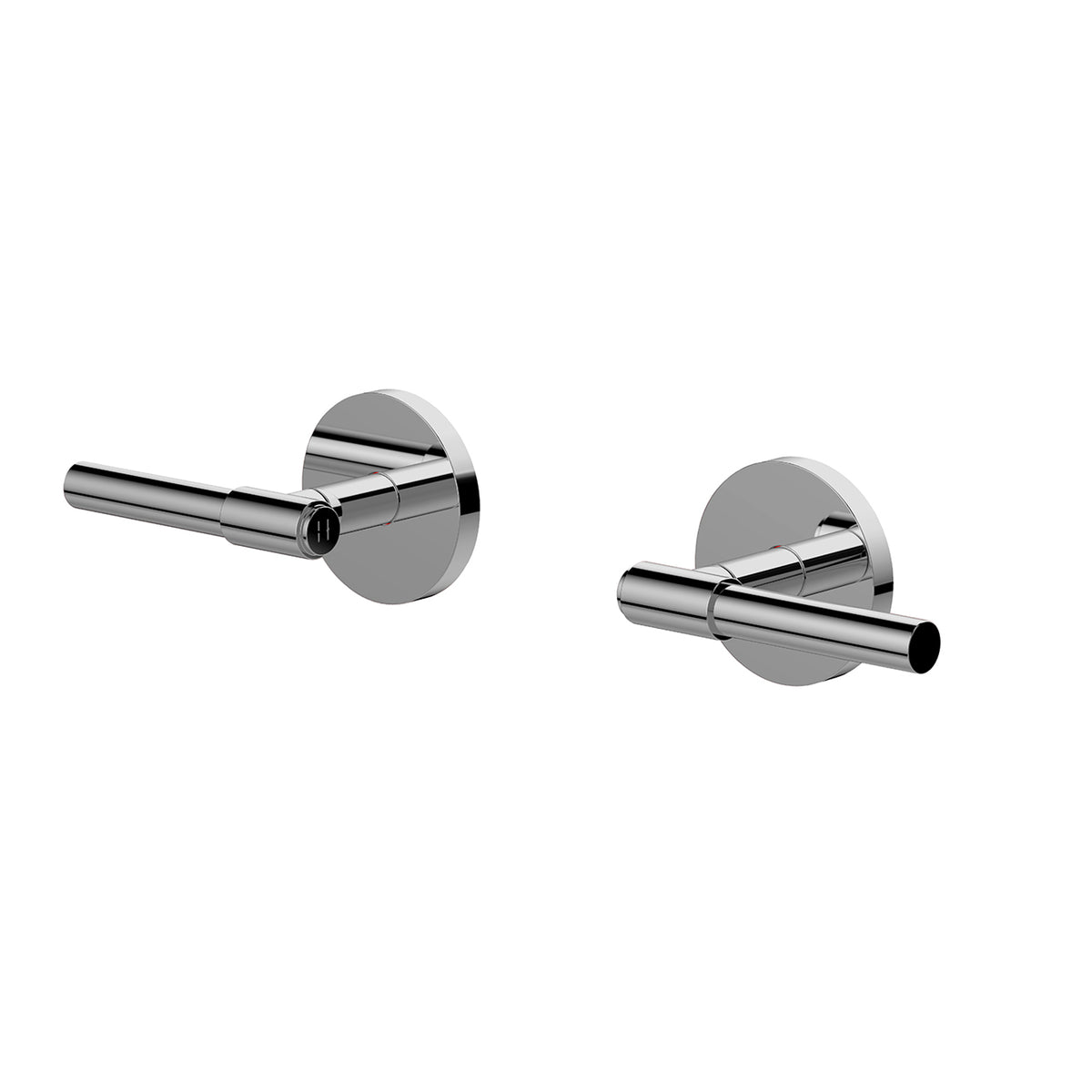

Phoenix Vivid MKII Wall Top Assemblies - Chrome
SKU: 146-0600-00-1
A pair of wall top assemblies in the Vivid MKII language, running quarter turn ceramic disc spindles so the handles move from off to full in a short arc. They suit retrofit work, which makes them a straightforward way to bring an older wall set into the collection without reworking what is behind the tiles. The machined handle and stepped pin carry the same detailing as the mixers. The chrome finish keeps it bright and neutral next to other fittings.
- Suits retrofit work, so an older wall set can take on the Vivid MKII look without opening up the wall.
- Quarter turn ceramic disc spindles move from off to full in a short arc, so there is no winding a tap open.
- The machined handle and stepped pin match the mixers in the range, so a part-upgrade still looks deliberate.
- Lead free brass body means nothing leaches into the water you wash and clean your teeth with.
- Backed by a 7 year product warranty.
- Designed in Australia.
Specifications
WELS water efficiency: N/A
WELS water consumption: N/A
WELS registration number: N/A
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: Electroplating
Operating mechanism: 1/4 turn ceramic disc spindles
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa
Spout function: Fixed
Overall depth: 51mm
Warranty: 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty
What's In The Box
1x Wall Top Assemblies, 1x Installation kit, 1x Installation instructions, 1x Warranty card
Downloads
Download the specification sheet below:
Phoenix Vivid MKII Wall Top Assemblies - Chrome
Download the installation instructions below:
