Castella Reed Cabinet Handles Buying Guide


Castella Reed is a small, plain range: one slim D pull handle in three lengths and one flat disc knob, in four finishes. This page holds the Reed handle in Gunmetal, Dull Brushed Nickel, Satin Brass and Matte Black, and the Reed 35mm knob in Gunmetal, Dull Brushed Nickel and Matte Black. The handle is a gently curved D pull in lightweight aluminium, and the knob is a modern disc, for kitchens, bathroom vanities, laundries and furniture. The range is small, so this page can be specific. It covers what each piece is and how it measures, what the aluminium means for wear, and how to pick between the finishes. It then covers sizing a handle and a knob, and fitting and caring for them. For the whole brand, see Castella cabinet handles, and for handles in every material and finish, start at cabinet handles.

What the Reed range is

The Reed handle is a D pull, a curved bar fixed at two points so that the grip stands away from the door and comes back to it. The gently curved form suits minimalist interiors and modern and industrial rooms. It is a clean, cylindrical form with a minimalist profile. The Reed knob is a round, flat disc with softened edges, simple and sculptural. It is 35mm across and stands 26mm off the door.

The two pieces share one design language. The knob pairs with the 160, 224 and 320mm handles as a matching set. A practical way to use that is knobs on small drawers and light doors, and handles on large drawers and tall doors, in the same finish. For the D shape in other ranges, see D shaped cabinet handles, and for knobs in other shapes, round shaped cabinet handles and cabinet knobs.

The pieces, measured

Hole centres, also called the fixing distance, are the gap between the two screw holes, overall length is the full length of the handle, and projection is how far the handle stands off the door.

  • The Castella Reed Handle is 172mm overall on 160mm centres, 236mm overall on 224mm centres, and 332mm overall on 320mm centres. It is 10mm thick with a projection of 35mm. The Dull Brushed Nickel and Satin Brass finishes come in all three sizes, and the Gunmetal and Matte Black finishes in the 160mm size.

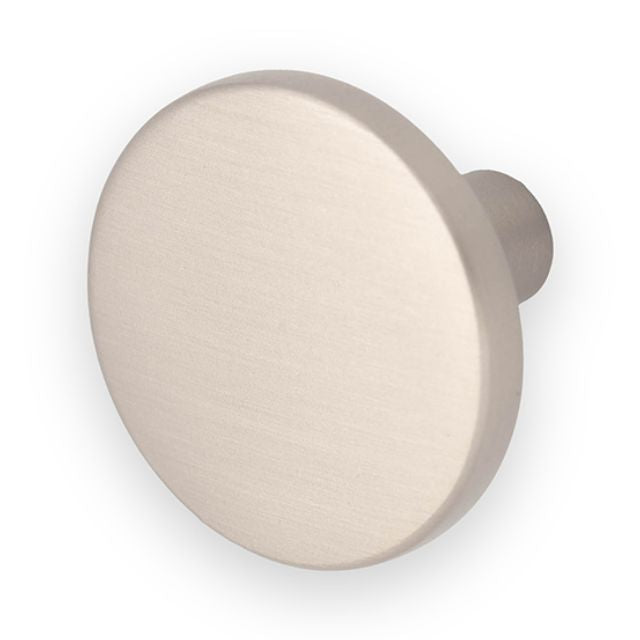

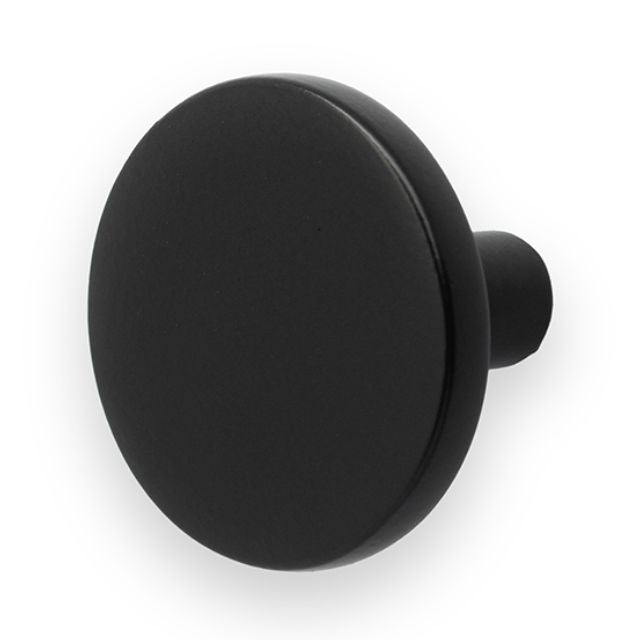

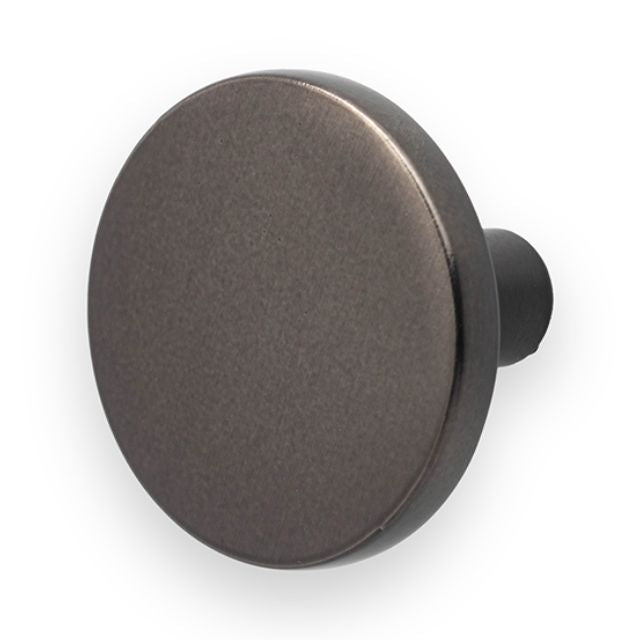

  • The Castella Reed 35mm Knob is 35mm across with a projection of 26mm. It comes in Gunmetal, Dull Brushed Nickel and Matte Black.
  • The handle ships with two 25mm M4 screws, and the knob with one 25mm M4 screw.

Read the numbers together. The handle is 12mm longer than its centres at every size, so the 160mm handle is 172mm long and the 320mm one is 332mm. The section is only 10mm thick, which is slim, and the projection is 35mm. The knob projects 9mm less than the handle. Check the specification sheet for the cabinet thickness your screws need, since only the screw length is given.

What aluminium means for a handle

Most Reed pieces are aluminium, though the Satin Brass handle is zinc alloy, so read the material line of the piece you choose. Aluminium is the lightest option, significantly lighter than brass and zinc-based alloys, practical and versatile, with good corrosion resistance, and suited to designs where reduced weight improves usability and to contemporary styles. Aluminium extrudes into long, slim profiles, which is how a 10mm section is made. Anodised colour is a surface layer with the same wear caveat as plating.

That caveat is the useful one. A protective coating can eventually wear through where fingers touch most, and that spot will darken or show the base metal. On a D pull, the touch point is the inside of the curve and the top of the grip. A gunmetal or black finish hides this better than a bright one, and a brushed finish hides it better than a polished one. Brass is the heaviest of the common handle metals and zinc alloy sits between, which is why a zinc or brass handle feels more solid in the hand. For weight and a substantial feel, see solid brass cabinet handles. For aluminium in other ranges, see aluminium cabinet handles.

Choosing a finish

Four finishes are offered. Gunmetal is a dark grey with a dark matte face and cool undertones, darker and moodier than brushed nickel, that resists fingerprints and water spots better than shinier finishes, and the dark tone helps conceal marks. It is softer in look than matte black. See gunmetal grey cabinet handles.

Dull brushed nickel is the lightest and the quietest. Brushed nickel has a warmer, softer, lighter grey tone with a subtle sheen, and gunmetal hides smudges better. It suits stainless appliances and pale cabinetry. See brushed nickel cabinet handles.

Matte black is the boldest: a modern, slightly edgy finish that contrasts sharply with lighter surfaces and can overpower a small room if overused. It resists fingerprints and is easy to maintain. See black cabinet handles.

Satin Brass is the warm option. Brushed brass is warm and elegant and good with white or navy cabinetry. The matching finish is sometimes called Brushed Gold, so the shade may differ between ranges. Hold a sample against your tap before you order. See brushed brass cabinet handles.

Matching and mixing in a room

Three rules apply to the room. Use the same finish through the home, even if shapes and sizes vary, limit each room to two metal finishes, and either match handles to other fixtures or contrast them on purpose. For the Reed, the simple answer is one finish for every handle and knob in the room, which the range makes easy, since the finishes come in both pieces except Satin Brass, which is a handle only. Choose the finish by the tapware and the cabinet colour, and by the choice between contrast and a match. Gunmetal and black suit pale cabinets and stone, nickel suits a pale or stainless kitchen, and satin brass suits white, navy and timber.

Choosing the size

Hole centres, and not overall length, measure handle length. As a rule of thumb and not a strict rule, a pull is commonly about one third of the drawer or door width. Pot drawers and pantry doors take longer handles of 250mm or more, and smaller handles or knobs suit upper cabinets.

Read against the Reed range, the 160mm handle suits a drawer front of 450 to 700mm, and the 224mm handle suits a wider drawer or a pot drawer. The 320mm handle suits a very wide drawer, a pantry door or a tall panel, and the 35mm knob suits a drawer up to about 400mm wide or a standard door. The most common knob size is about 32mm, with 38mm for tall upper cabinets and pantry doors, and a drawer 600mm or wider needs two knobs or a pull. Use the knob on small fronts and the handle on large ones.

Fitting the Reed

The handle and the knob fix from the back of the door. If you are replacing handles, measure the centres of the holes you have and match them unless you plan to fill the old holes. A 128mm handle will not fit 160mm holes without drilling new holes, which can leave marks on a painted or veneered front. The Reed centres of 160 and 224mm are among the common centre sizes, so check that your existing holes match before you order. Many handles include screws for 16 to 18mm cabinet boards, so check your door thickness against the 25mm screws.

Centre the handle on a drawer front. On a base door, place it near the top corner on the side opposite the hinges, and on a wall door near the bottom corner. The usual rule is horizontal handles on pull-out drawers and vertical handles on doors, and handles should never hit each other when cabinets open. Test with painter's tape before you drill, and check your fingers fit behind the handle, since the 35mm projection is the room your hand has. See cabinet pull handles for other bar pulls, and bathroom vanities for the cabinets.

Using the Reed in a bathroom or laundry

The Reed suits wet rooms in a limited way. Aluminium has good corrosion resistance, and a finished brass or zinc handle has a protective coating that eventually wears at the touch points. In a bathroom, the practical steps are to dry the handle after you wipe it, to keep cleaning products off it, and to choose a dark or brushed finish that hides water spots. The dark tone and brushed texture of gunmetal help conceal marks, and gunmetal fixtures should be dried after use to limit watermarks and surface rust. For a vanity door, the 35mm knob is the common choice. Fit one handle to test the finish and the feel before you buy a full set, since tones differ between ranges.

How to care for Reed handles

Wipe the handle with a soft cloth and mild soap and water, then dry it. Dull-looking finished handles are usually a film of hand oil and cooking residue and not changed metal, so clean with warm water and a soft cloth and dry properly. Abrasive pads, steel wool, bleach and harsh chemicals are out, and a gunmetal finish needs warm soapy water and a soft microfibre cloth, with fixtures dried after use to limit watermarks.

A short checklist before you order

  • Choose the handle for drawers and tall doors, and the knob for small drawers and light doors.
  • Read the material line of the piece you choose, since the Satin Brass handle lists zinc alloy.
  • Measure the centres of your existing holes, and choose a handle about one third of the drawer width.
  • Choose one finish for the whole room, and hold a sample against your tap.
  • Check the door thickness against the 25mm screws.

For the full range of handle styles, return to cabinet handles.

Frequently Asked Questions

What is Castella Reed?

Reed is a named handle design within the Castella hardware range, sold through The Blue Space as its own collection rather than as one option buried inside the wider brand. Like other Castella products, it's a cabinet and drawer pull, distinct from the brand's other named ranges and shapes.

What does the 'Reed' name suggest about this handle's design?

Reeding is a decorative detailing style using a series of fine parallel ridges or grooves along a surface, so a handle carrying this name is likely to feature a fluted or ribbed texture along its length rather than a completely smooth profile. That textured surface gives the handle more visual and tactile interest than a plain bar pull, while it should still follow the same overall fixing and grip mechanics as any Castella bar-style handle.

How does Castella Reed differ from the rest of the Castella range?

Castella spans multiple shapes, profiles and finishes rather than one signature look, and Reed is one specific named design within that broader range. For the full picture of what else Castella offers across finishes and profiles, the Castella hub covers the brand more generally, while this page is specifically about the Reed design.

What size Castella Reed handle suits my cabinetry?

The general one-third sizing rule applies here as with any bar-style cabinet handle: aim for a length around a third of the width of the door or drawer front, and check hole centres (the distance between the two fixing screws) against existing cabinetry if you're replacing rather than fitting new. A textured profile like Reed doesn't change the sizing method, only the surface finish.

Does a textured handle like Reed need different care to a smooth one?

Grooved or ribbed surfaces can collect more dust and grime in the recesses than a flat bar, so a soft brush or cloth worked along the grooves during regular cleaning keeps the detail looking sharp. Beyond that, care follows the same general rule as other cabinet hardware: avoid abrasive cleaners that could dull a plated or coated finish.

Can Castella Reed be matched with other hardware in my home?

Yes, provided the finish is consistent. A textured handle like Reed can sit alongside plainer bar pulls or knobs elsewhere in the same kitchen, bathroom or laundry as long as the metal finish matches or coordinates, the same principle that applies across any mixed-shape hardware scheme; see the cabinet handles hub for the broader finish-matching guide.
