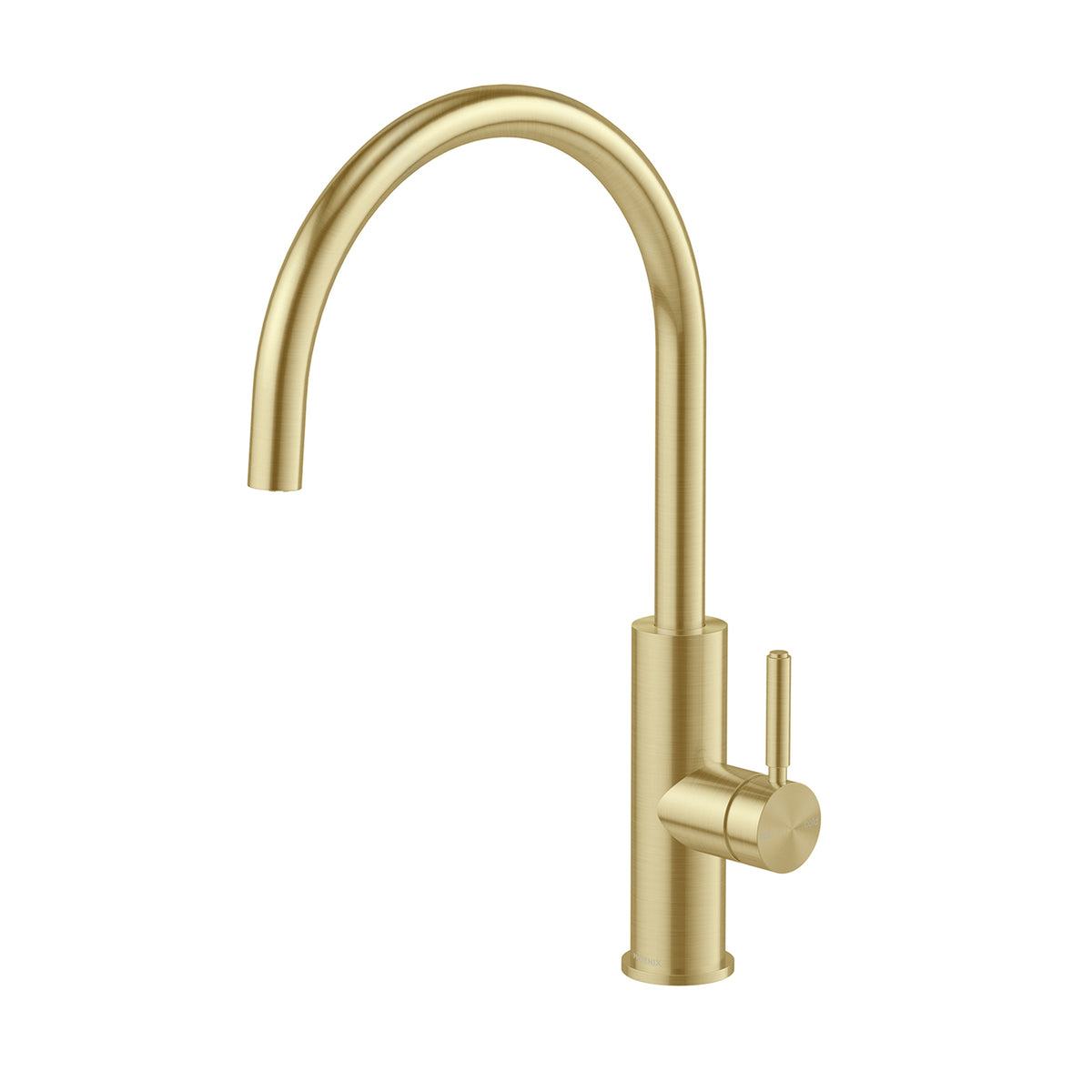

Phoenix Vivid MKII Sink Mixer 230mm - Brushed Gold
SKU: 146-7330-12-1
A fixed spout sink mixer in the Vivid MKII language, carrying the machined handle and stepped pin that run through the collection. The spout swivels a full 360 degrees, and a fixed dress plate keeps the base tidy against the bench. Inside is a 35mm ceramic cartridge with a cold start position at centre. It sits alongside the pull out mixers in the range for anyone who would rather keep the outlet fixed. Brushed gold gives the same form a warmer cast.
- Spout swivels a full 360 degrees, so it clears the bowl completely when you need the sink free.
- Cold start cartridge means the lever starts in cold at centre, so a quick rinse does not pull on the hot water service.
- The 35mm ceramic cartridge is covered for 15 years.
- A fixed dress plate covers the bench hole cleanly, which keeps the install tidy and quick.
- Lead free brass body means nothing leaches into water you use for cooking or drinking.
- Rated 6 star at 4 litres a minute and 4 star at 7.5 litres a minute.
- The simpler, fixed spout choice in a range that also offers pull out handpiece mixers.
Specifications
WELS water efficiency: 6 Star & 4 Star WELS rated
WELS water consumption: 4lt/min & 7.5lt/min
WELS registration number: T49336 (6 star) and T49337 (4 star)
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: PVD
Operating mechanism: 35mm ceramic cartridge
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa

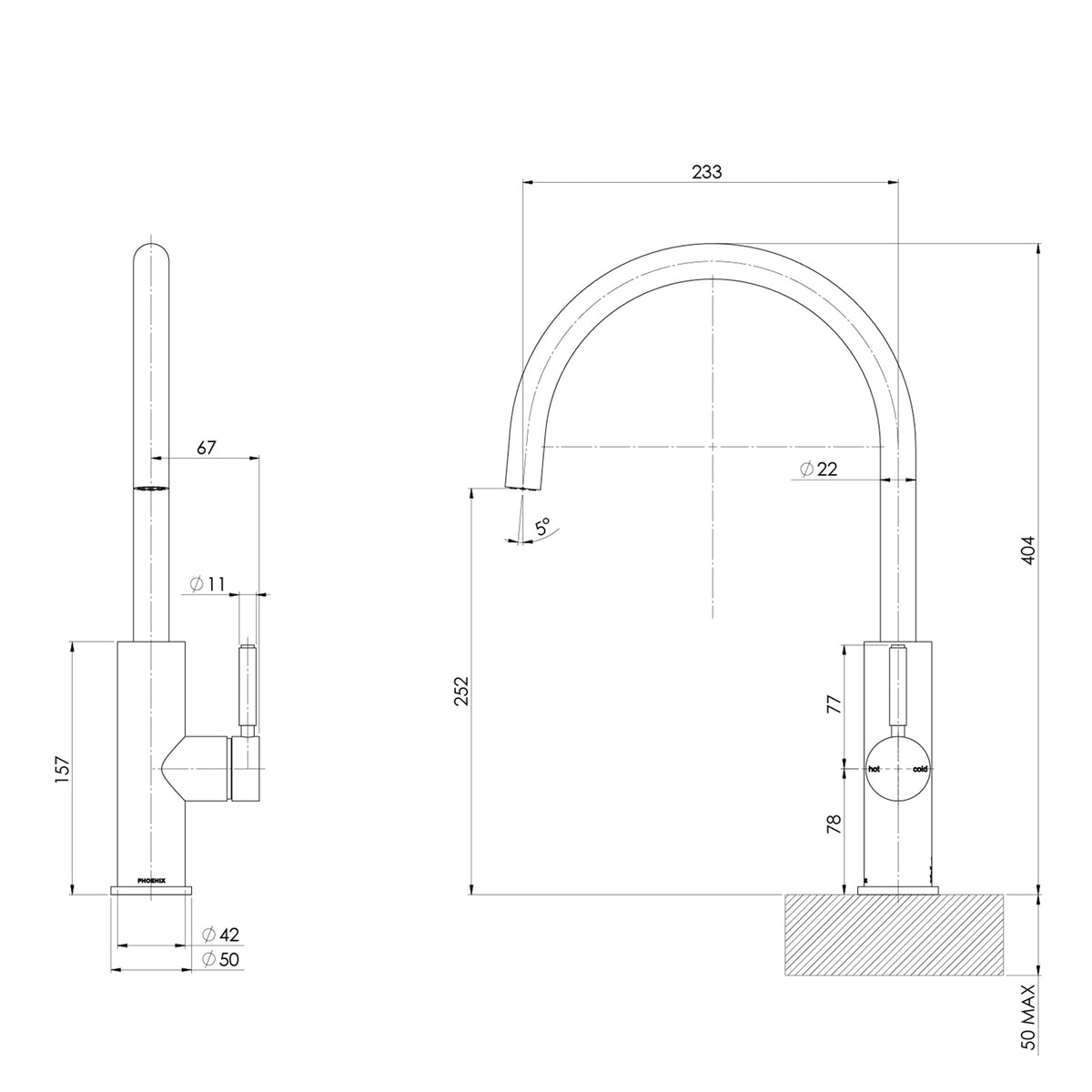

Overall height: 404mm
Height to spout: 252mm
Spout reach: 233mm
Spout function: Fixed
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty
What's In The Box
1x Sink Mixer 230mm, 1x Installation kit, 1x Installation instructions, 1x Warranty card
Downloads
Download the specification sheet below:
Phoenix Vivid MKII Sink Mixer 230mm - Brushed Gold
Download the installation instructions below:
