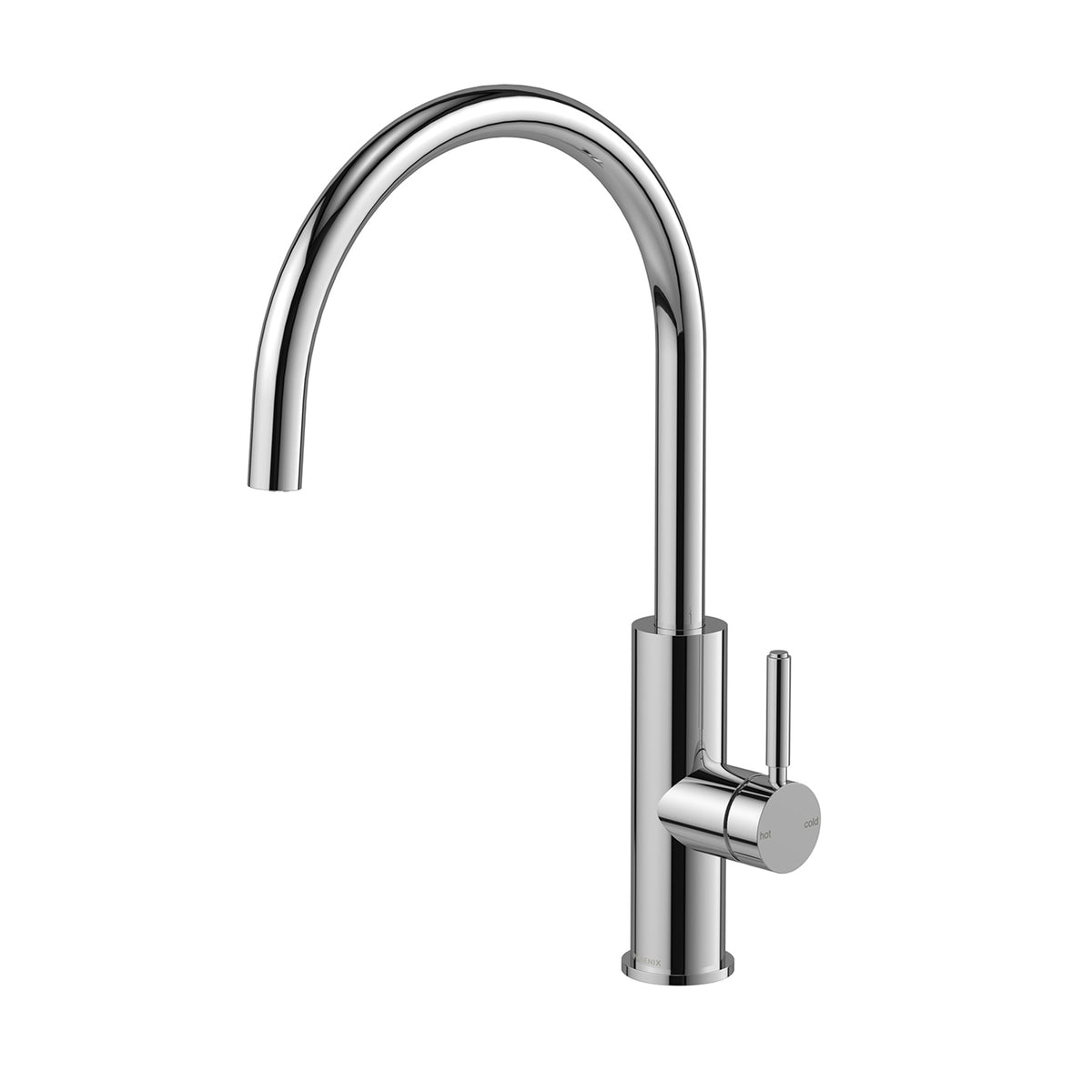

Phoenix Vivid MKII Sink Mixer 230mm - Chrome
SKU: 146-7330-00-1
A fixed spout sink mixer in the Vivid MKII language, carrying the machined handle and stepped pin that run through the collection. The spout swivels a full 360 degrees, and a fixed dress plate keeps the base tidy against the bench. Inside is a 35mm ceramic cartridge with a cold start position at centre. It sits alongside the pull out mixers in the range for anyone who would rather keep the outlet fixed. The chrome finish keeps it bright and neutral next to other fittings.
- Spout swivels a full 360 degrees, so it clears the bowl completely when you need the sink free.
- Cold start cartridge means the lever starts in cold at centre, so a quick rinse does not pull on the hot water service.
- The 35mm ceramic cartridge is covered for 15 years.
- A fixed dress plate covers the bench hole cleanly, which keeps the install tidy and quick.
- Lead free brass body means nothing leaches into water you use for cooking or drinking.
- Rated 6 star at 4 litres a minute and 4 star at 7.5 litres a minute.
- The simpler, fixed spout choice in a range that also offers pull out handpiece mixers.
Specifications
WELS water efficiency: 6 Star & 4 Star WELS rated
WELS water consumption: 4lt/min & 7.5lt/min
WELS registration number: T49336 (6 star) and T49337 (4 star)
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: Electroplating
Operating mechanism: 35mm ceramic cartridge
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa

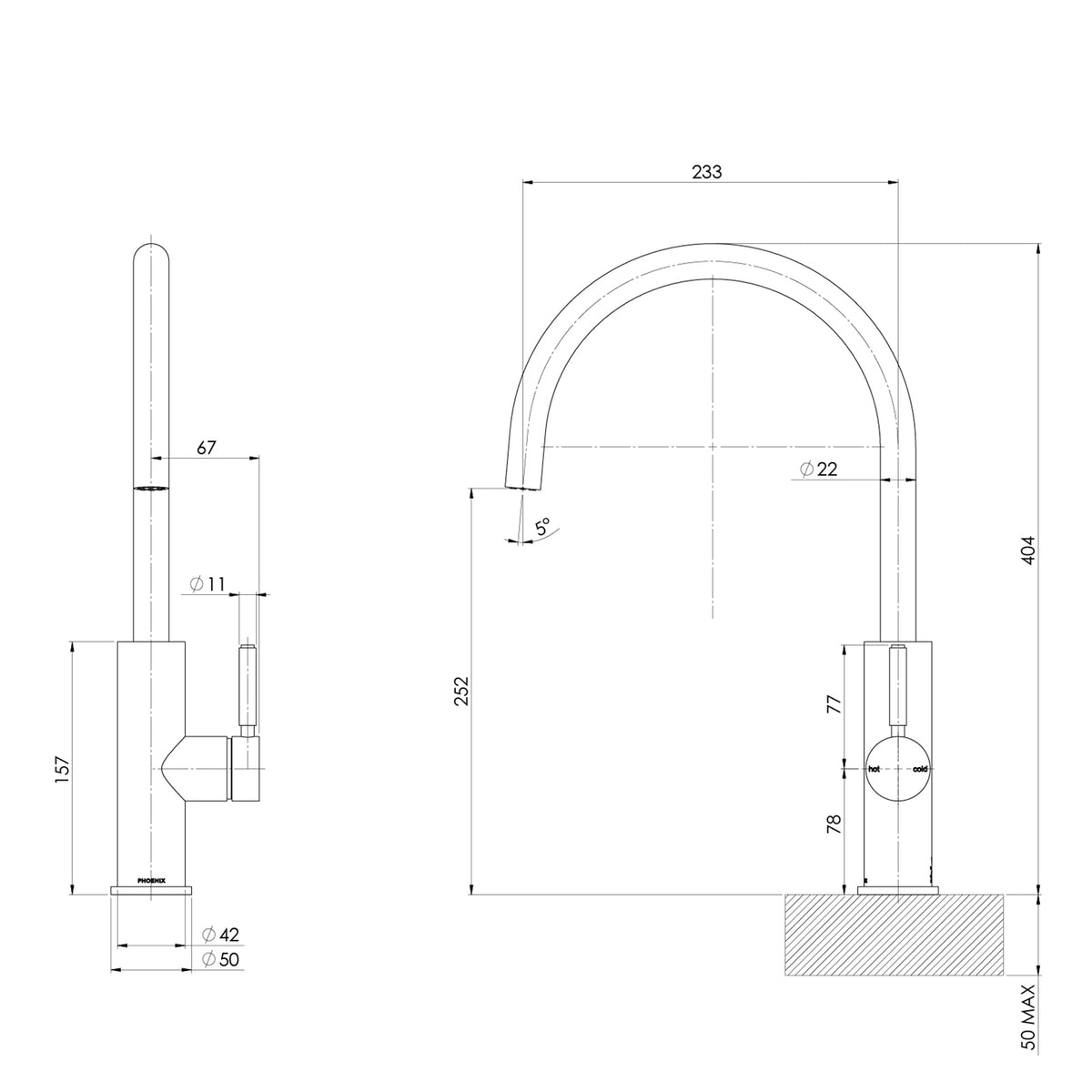

Overall height: 404mm
Height to spout: 252mm
Spout reach: 233mm
Spout function: Fixed
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty
What's In The Box
1x Sink Mixer 230mm, 1x Installation kit, 1x Installation instructions, 1x Warranty card
Downloads
Download the specification sheet below:
Phoenix Vivid MKII Sink Mixer 230mm - Chrome
Download the installation instructions below:
