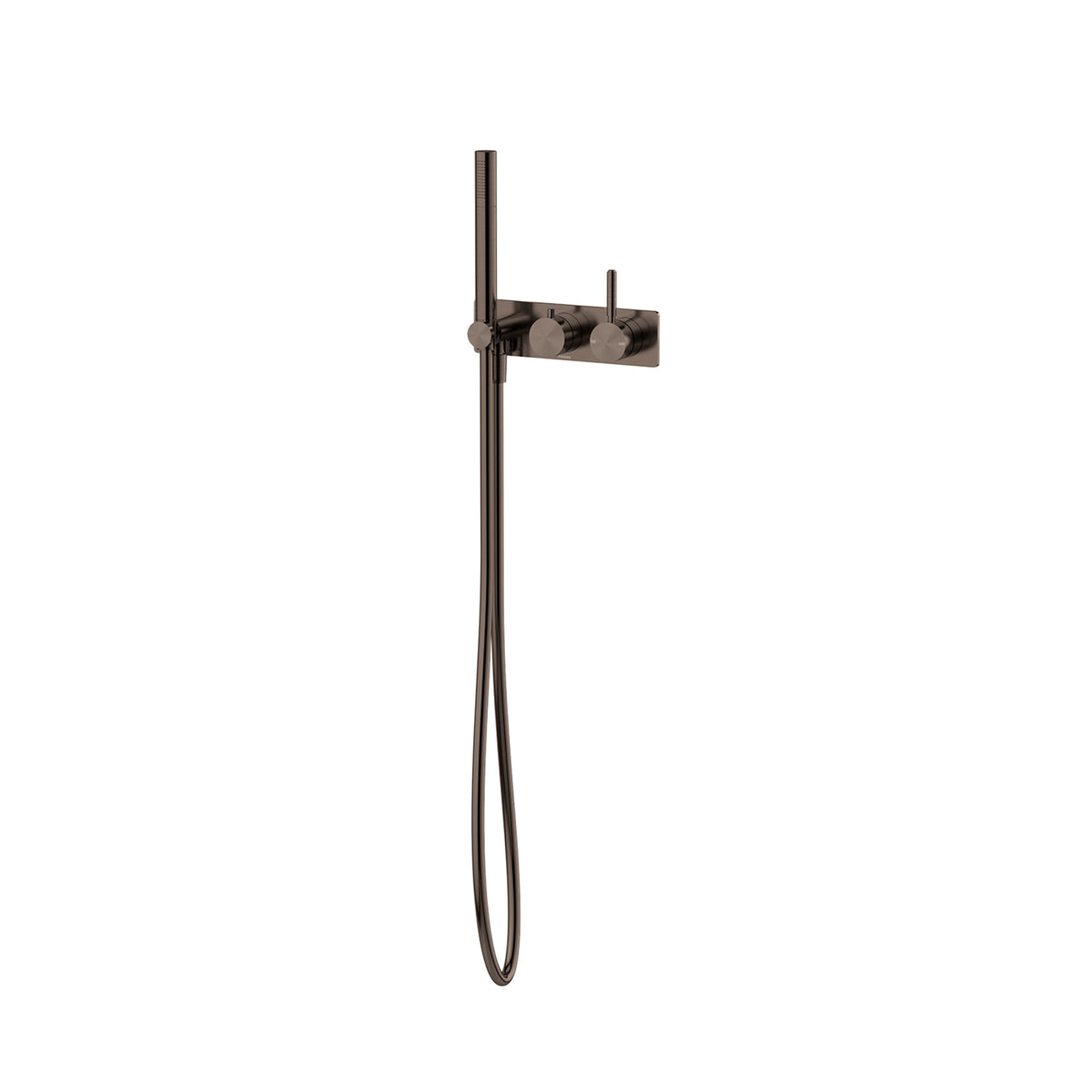

Phoenix Vivid MKII Wall Shower System - Brushed Bronze
SKU: 146-7490-24
A wall mounted shower system that brings the mixer, a ceramic 180 degree rotary diverter and a single function handpiece together on one plate. The diverter moves water between the handpiece and a second connected outlet, so an overhead rose can run off the same control. Inside is a 35mm ceramic cartridge, with AS2845.1 compliant dual check valves fitted. Designed in Australia, in the substantial, squared forms of Vivid MKII. Brushed bronze, new to the range, is the deepest and warmest of the five finishes.
- Mixer, diverter and handpiece arrive as one unit, so you are not assembling a shower from separately bought parts.
- The ceramic 180 degree rotary diverter switches between the handpiece and a second connected outlet, which is what lets you add an overhead rose to the same control.
- Handpiece runs on an easy-clean hose, so soap and mineral marks wipe off rather than building up in a braid.
- AS2845.1 compliant dual check valves are fitted, so backflow protection is built in.
- The 35mm ceramic cartridge is covered for 15 years.
- Designed in Australia, and finished to match the rest of the Vivid MKII collection.
Specifications
WELS water efficiency: 3 star WELS rated
WELS water consumption: 8lt/min
WELS registration number: S49339
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: PVD
Operating mechanism: 35mm ceramic cartridge
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa

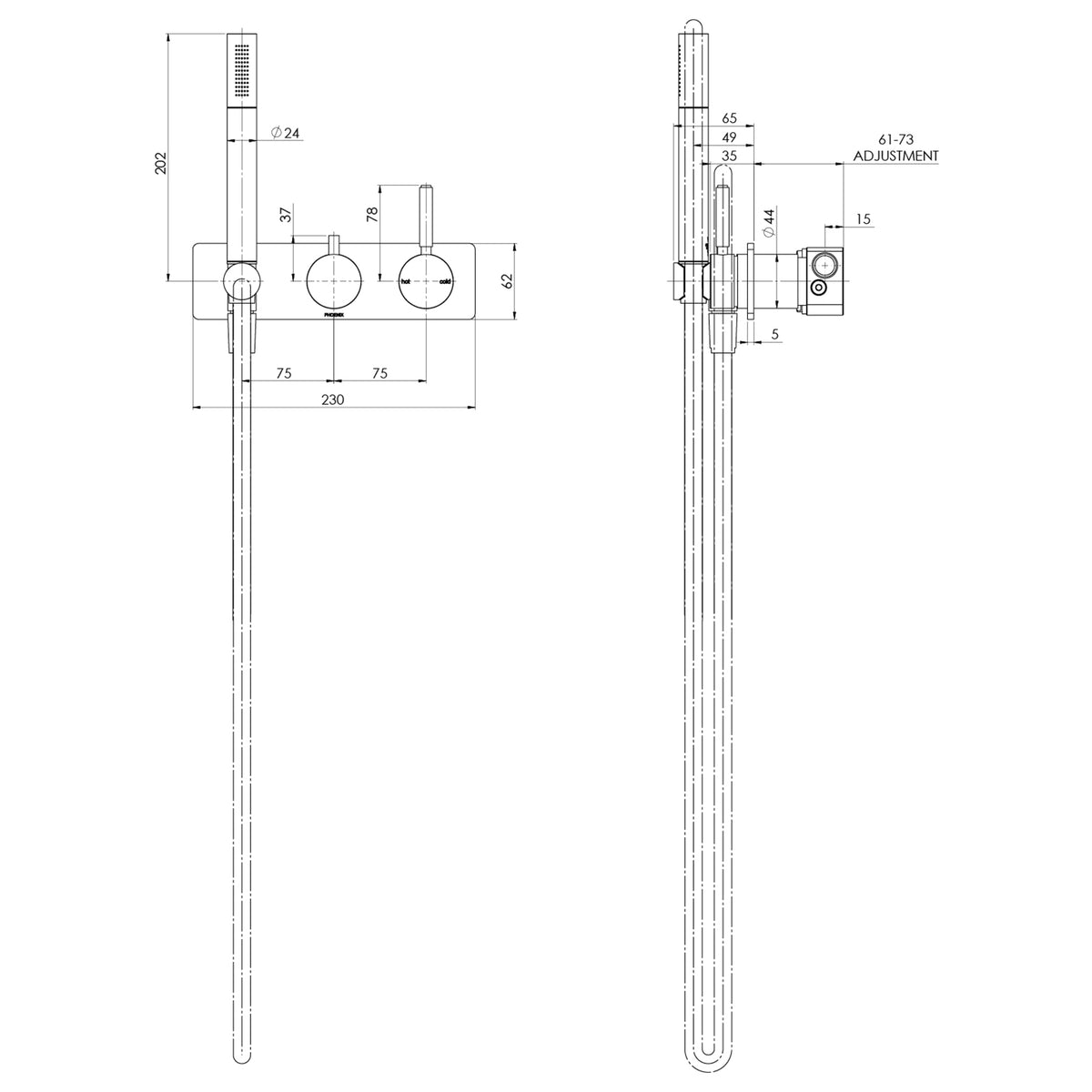

Overall height: 233mm
Spout function: Fixed
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty
What's In The Box
1x Wall Shower System, 1x Installation kit, 1x Installation instructions, 1x Warranty card
Downloads
Download the specification sheet below:
Phoenix Vivid MKII Wall Shower System - Brushed Bronze
Download the installation instructions below:
