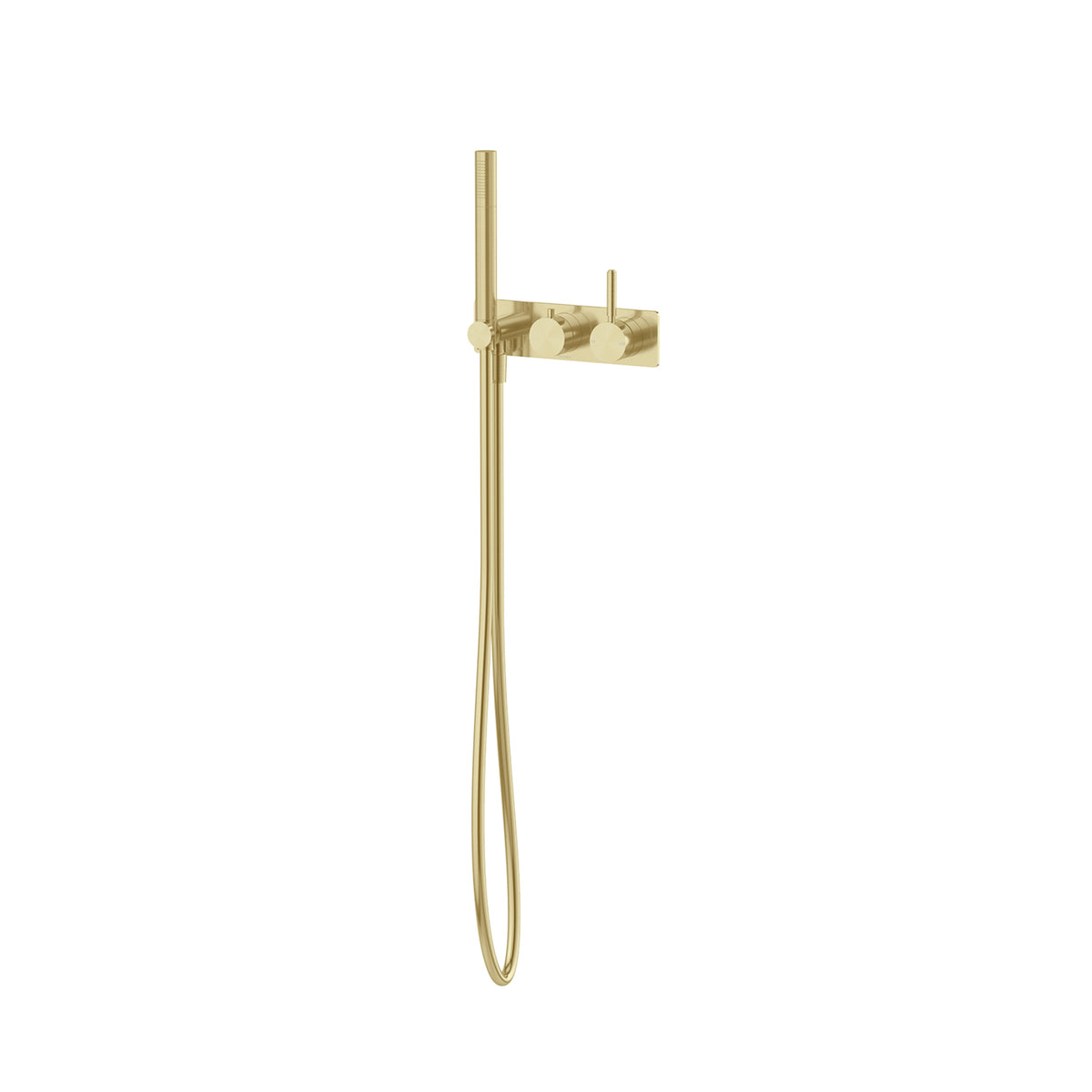

Phoenix Vivid MKII Wall Shower System - Brushed Gold
SKU: 146-7490-12
A wall mounted shower system that brings the mixer, a ceramic 180 degree rotary diverter and a single function handpiece together on one plate. The diverter moves water between the handpiece and a second connected outlet, so an overhead rose can run off the same control. Inside is a 35mm ceramic cartridge, with AS2845.1 compliant dual check valves fitted. Designed in Australia, in the substantial, squared forms of Vivid MKII. Brushed gold gives the same form a warmer cast.
- Mixer, diverter and handpiece arrive as one unit, so you are not assembling a shower from separately bought parts.
- The ceramic 180 degree rotary diverter switches between the handpiece and a second connected outlet, which is what lets you add an overhead rose to the same control.
- Handpiece runs on an easy-clean hose, so soap and mineral marks wipe off rather than building up in a braid.
- AS2845.1 compliant dual check valves are fitted, so backflow protection is built in.
- The 35mm ceramic cartridge is covered for 15 years.
- Designed in Australia, and finished to match the rest of the Vivid MKII collection.
Specifications
WELS water efficiency: 3 star WELS rated
WELS water consumption: 8lt/min
WELS registration number: S49339
Watermark certification: All Phoenix Tapware & Mixers are Watermark Certified
Construction material: Lead-Free Brass
Finish/coating: PVD
Operating mechanism: 35mm ceramic cartridge
Temperature rating: 1 - 75°C
Operating pressure: 150 - 500kPa
Overall height: 233mm
Spout function: Fixed
Warranty: 15 Year Cartridge Warranty 7 Year Product or Parts Warranty 7 Year Finish Warranty 1 Year Labour Warranty
What's In The Box
1x Wall Shower System, 1x Installation kit, 1x Installation instructions, 1x Warranty card
Downloads
Download the specification sheet below:
Phoenix Vivid MKII Wall Shower System - Brushed Gold
Download the installation instructions below:
