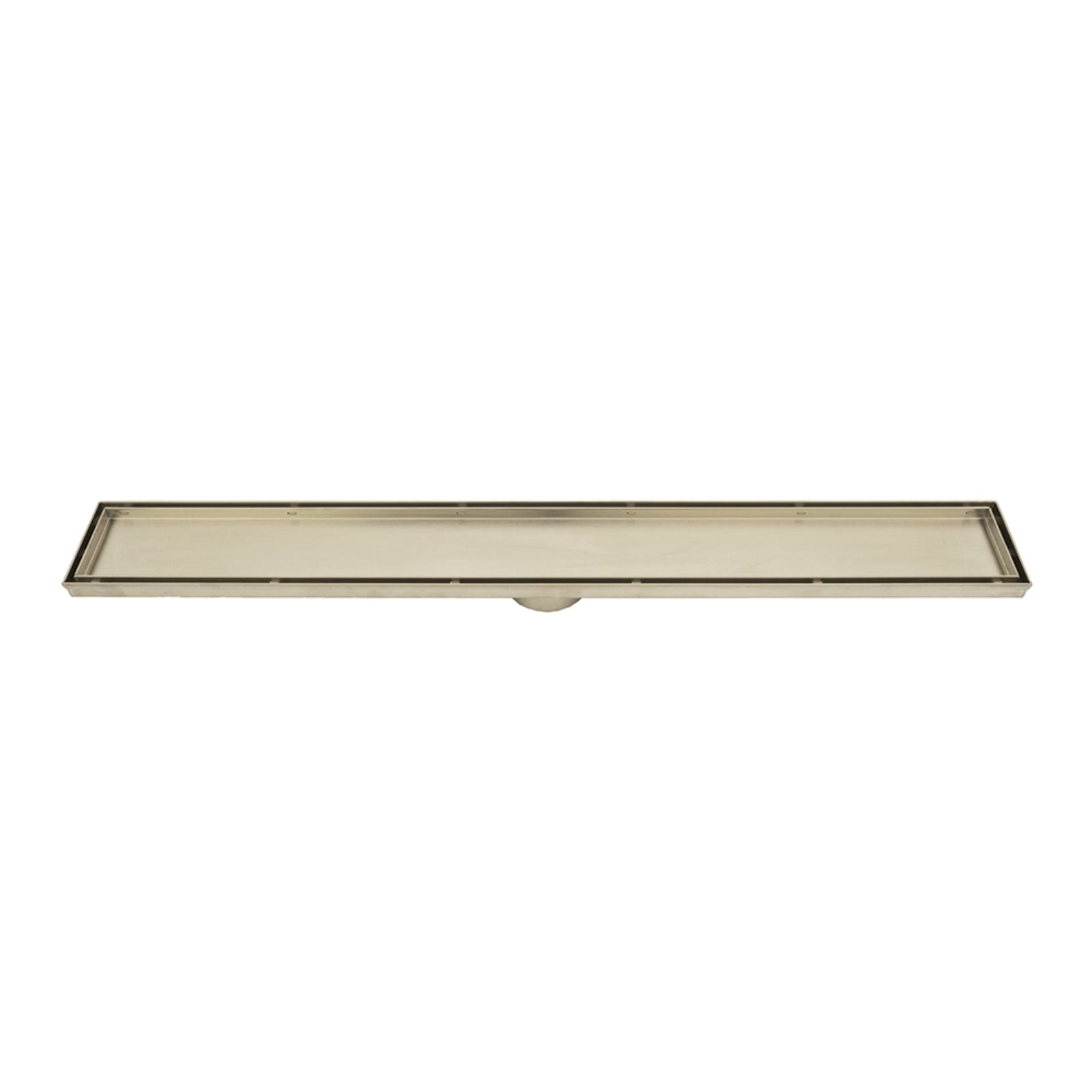

Radiant Tile Insert Linear Shower Grate - Warm Brushed Nickel
Out of stock with the manufacturer Australia-wide. More on the way, we receive daily lead time updates. Pre-order is available with ETA by postcode above. Dates may change.
SKU: 316-WBN-RGL-600-74
Wastes Traps Grates by Radiant
he Radiant Tile Insert Linear Shower Grate is a simple yet elegant rectangular design which will all but disappear after tile installation. These grates come in a range of sizes to suit any bathroom.
- 316 Marine Grade Stainless Steel
- Warm Brushed Nickel PVD finish
- Rolled edges to all exposed edges
- Available in 600mm, 700mm, 800mm and 900mm lengths
- Australian Watermark approved
- 12mm deep insert can accommodate up to 10mm tile and adhesive
- With fixed central wastes
- Puddle flange is NOT included with this grate
- Supported by a 7 year warranty
Specifications
Construction material: Stainless steel
Finish/coating: PVD
Width: 100mm
Length: 600mm / 700mm / 800mm / 900mm
Depth: 52mm
Insert depth: 12mm
Waste pipe size: 80mm
Outlet diametre: Ø 74mm
Warranty: 7 years
What's In The Box
- Radiant Tile Insert Linear Shower Grate - Brushed Nickel
Downloads
Download the specification sheet below:

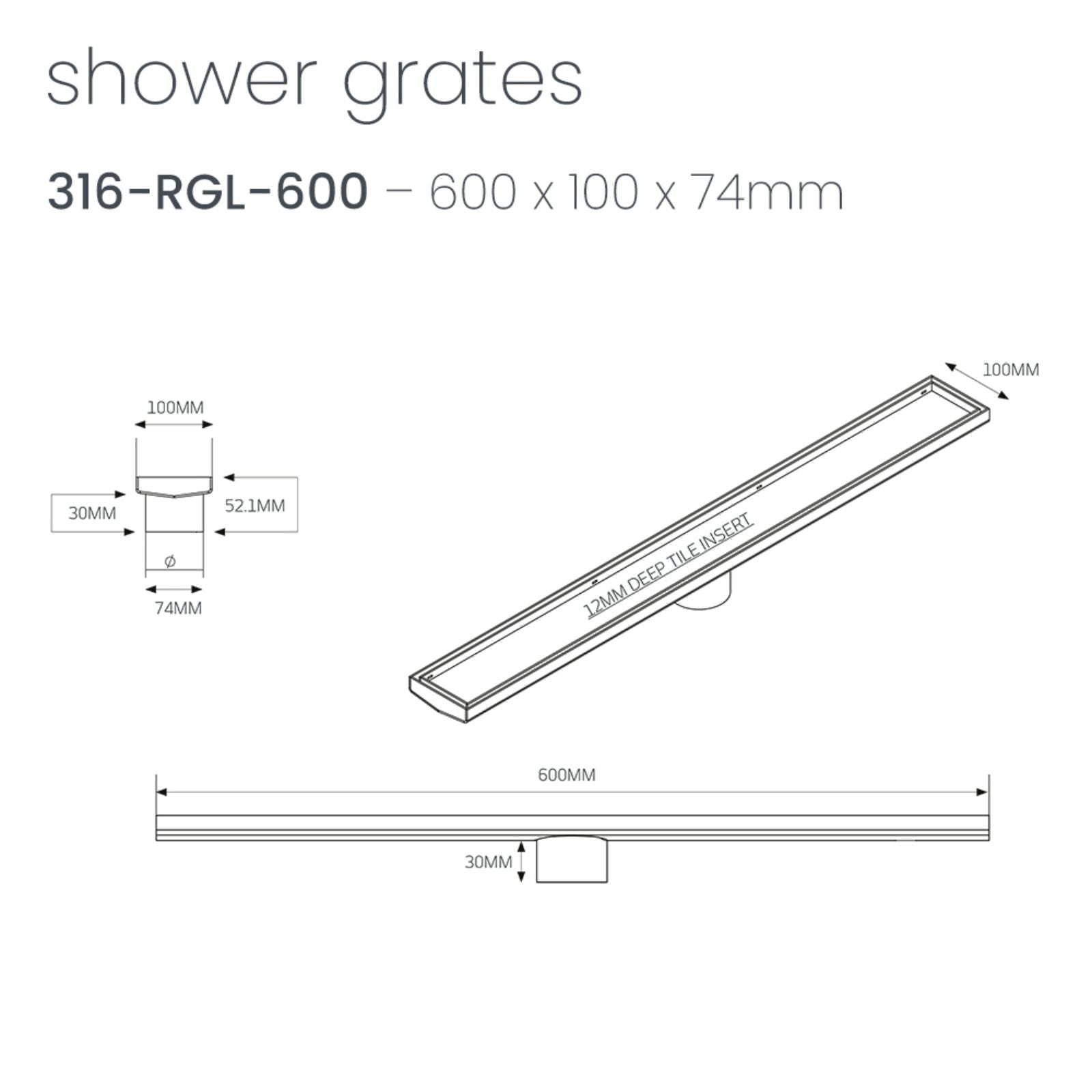

Radiant Tile Insert Linear Shower Grate - 600mm length + 74mm outlet - Brushed Nickel

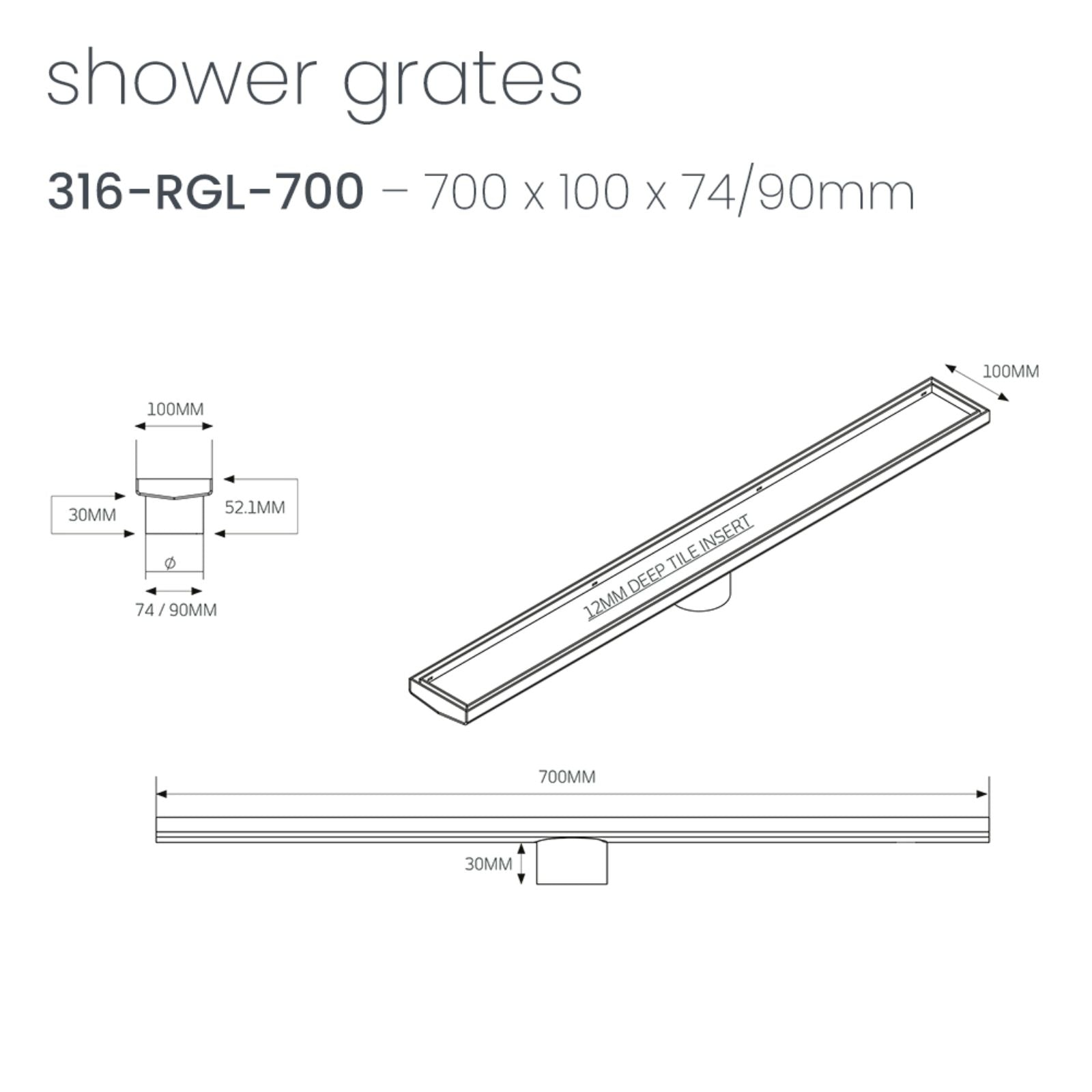

Radiant Tile Insert Linear Shower Grate - 700mm length + 74mm outlet - Brushed Nickel

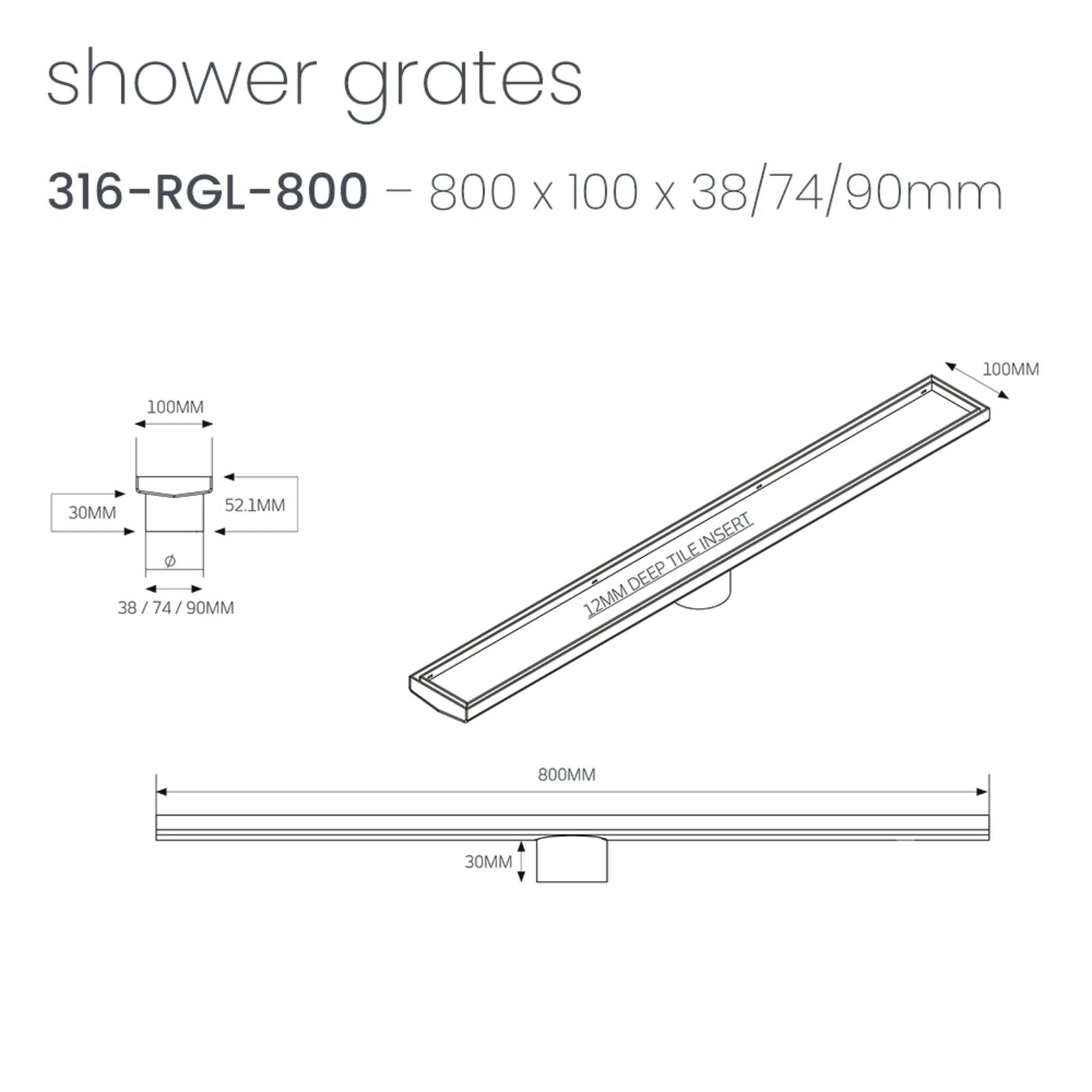

Radiant Tile Insert Linear Shower Grate - 800mm length + 74mm outlet - Brushed Nickel

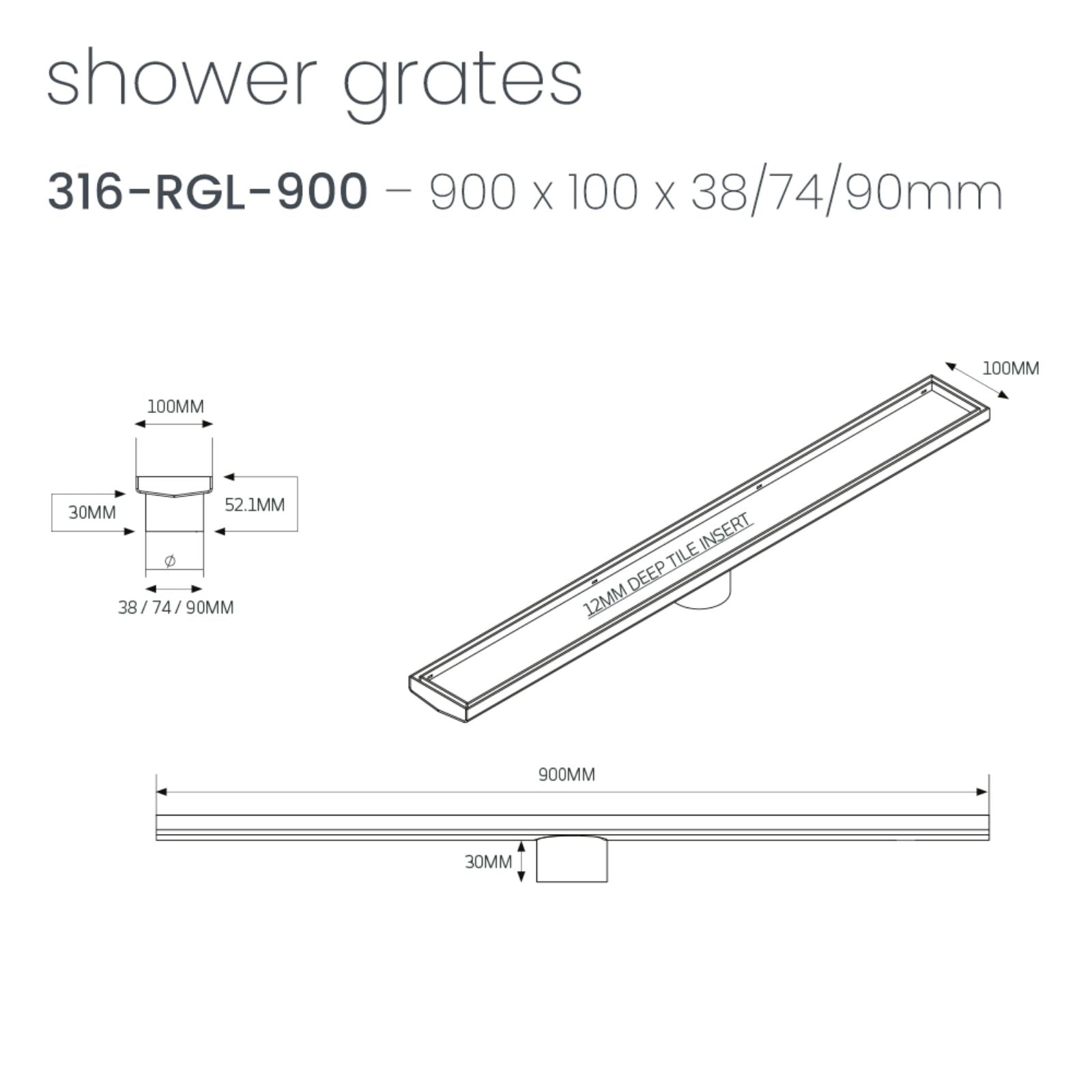

Radiant Tile Insert Linear Shower Grate - 900mm length + 74mm outlet - Brushed Nickel
