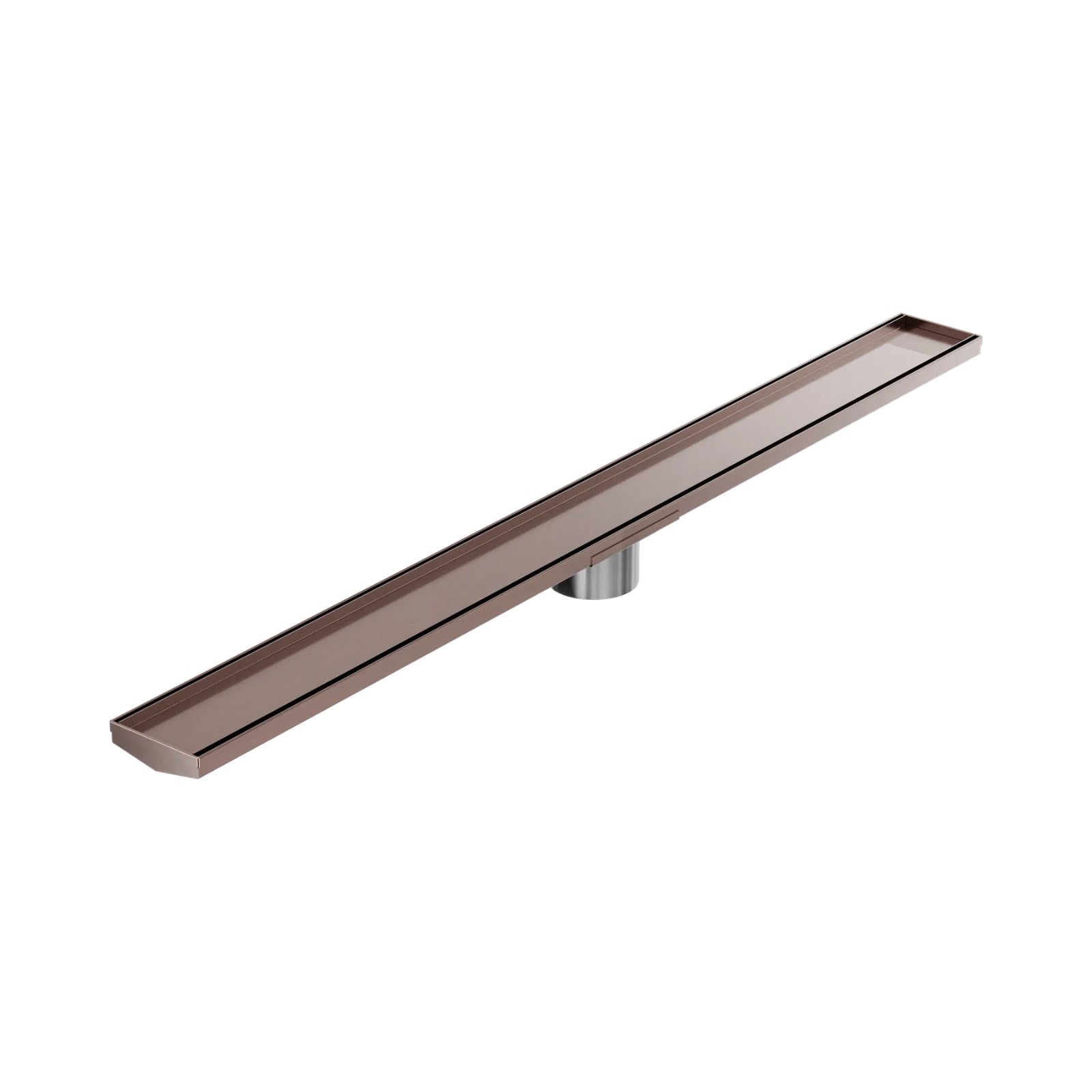

Nero Tile Insert V Channel 1200x106mm Floor Grate 90mm Outlet Brushed Bronze
SKU: NRFG005HSBZ_KIT
Wastes Traps Grates by Nero Tapware
The Nero Tile Insert V Channel Floor Grate in brushed bronze offers a streamlined solution for modern bathrooms, combining a 1200mm channel design with a 90mm outlet. Its tile insert format allows your chosen floor tile to sit within the grate for a clean, integrated look, while the V channel profile supports effective water flow along the length of the drain. Designed to pair with contemporary fixtures in a matching brushed bronze finish, it brings a cohesive and understated detail to tiled shower areas and wet zones.
- Fits 100mm puddle flange for easy integration
- Suitable for tiles with a thickness of less than 10mm
- Durable 304 stainless steel construction ensures long-lasting performance.
- Separate waste outlet and grate design provides greater installation flexibility.
- V-channel profile enhances water flow speed and drainage efficiency
- Available in 5 premium finishes to match various bathroom styles.
- Note: Outlet and grate are packed separately. Holesaw not included. You can add a hole saw to your order from the drop down box if required
- Supported by a 10 year warranty
Specifications
Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD
Overall length: 1200mm
Overall width: 106mm
Required Hole Size:90mm
Warranty: 10 Years

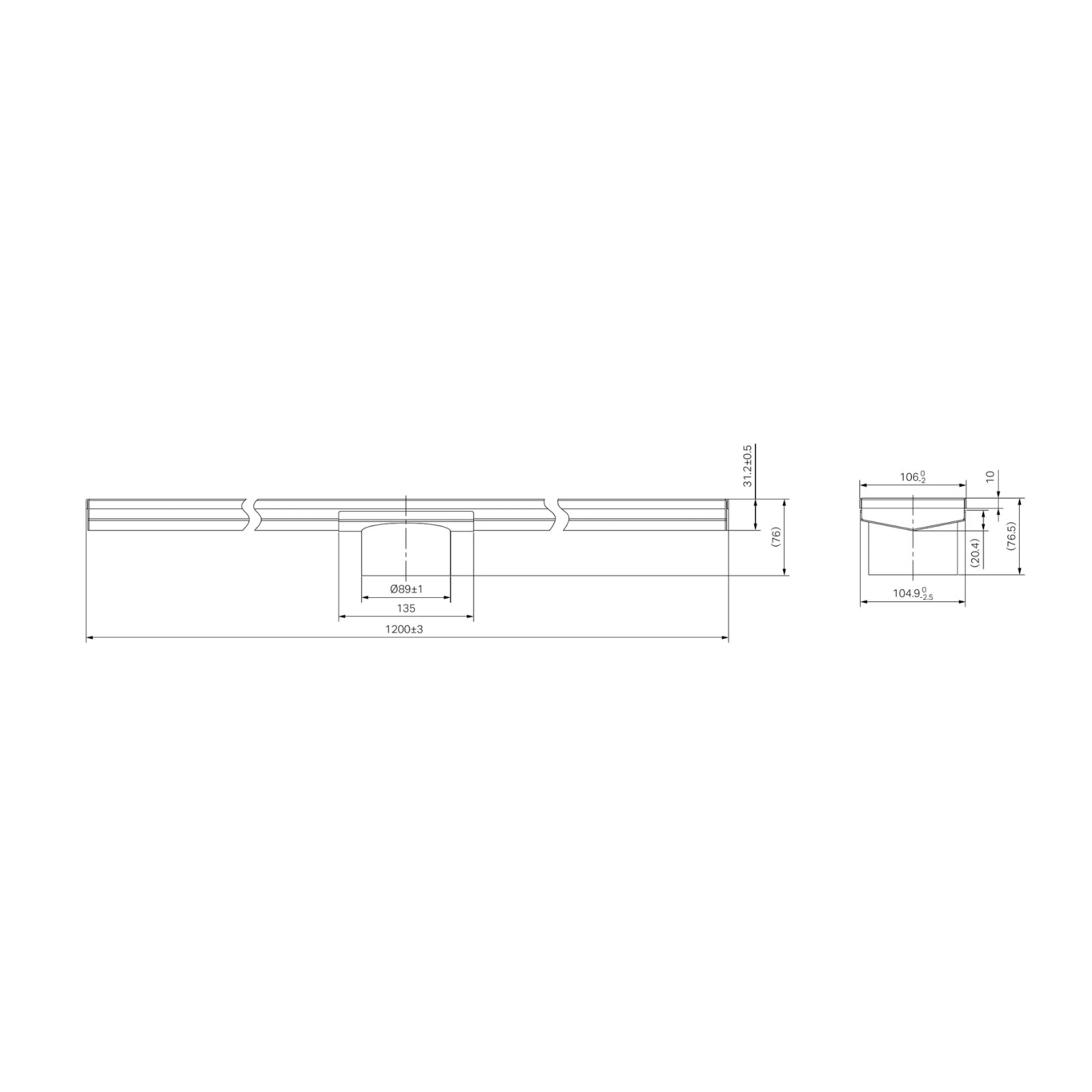

Spec Sheet
Download the specification sheet below:
Nero Tile Insert V Channel 1200x106mm Floor Grate 90mm Outlet Brushed Bronze
What's In The Box
1 x Floor Grate, 1x Outlet, Installation Instructions
