Radiant Under Tile Under Floor Heating Kit

Original price RRP $510
Current price $433
Add to wishlist
  • Asthma + allergy friendly
  • Touch Screen Display - vertical (portrait) orientation.
  • Economical to run
  • No heat lamps means exhaust fans can be placed over showers
  • Temperature control
  • A dry floor means less mould
  • On demand
  • Danish manufactured cable means quality and reliability
  • Cable guaranteed for 10 years
  • Installation instructions here


Our under-tile floor heating kit is perfect for putting floor heating under tiles, where the floor is not going to be screeded.

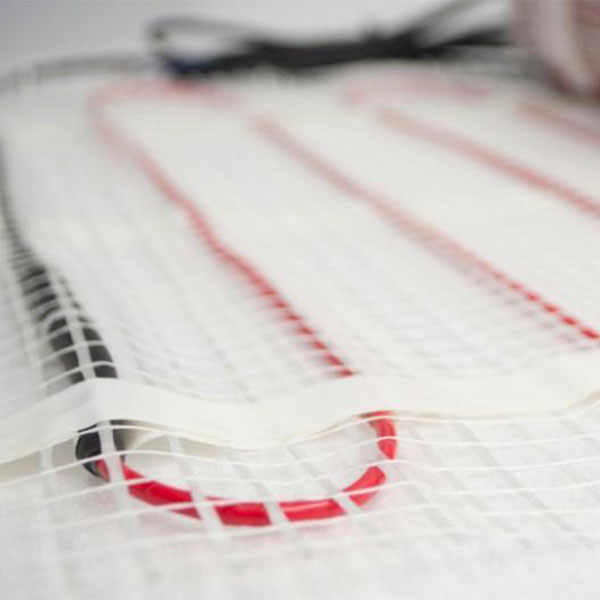

The cable mat is installed on the base surface and is then covered with the tile adhesive and tiles. The thin 3mm cables means that in many cases the tiler only has to use a little bit of extra adhesive. The mats are 500mm wide and are easily installed by cutting the matting (NOT THE CABLE) and snaking the mat backwards and forwards filling in the area to be heated. NOTE where large heavy tiles are being used it is
advisable to first cover the mats with a thin levelling compound to protect them.
This system is the most popular choice for bathrooms in VIC and TAS where
bathrooms are generally not screeded. It is also very popular for living areas in
all states

DIY Floor Heating Kits
DIY Floor Heating kits are a great option if you are renovating a bathroom or a room which is going to be screeded or tiled (see Related Products below). This option will save you the installation costs and using our detailed instructions you will have this installed in no time.

Planning A DIY Installation
When calculating the size of the mat you require for your project, you need to calculate ONLY THE FREE FLOOR SPACE in the room you are heating. For example in a bathroom you would generally exclude the toilet, bath, shower and vanity unit. Also when planning your installation bear in mind that the cable mat is 500mm wide so when planning how you will layout the mat, work in 500mm strips.

Cable Alarm
Included in your kit is a cable alarm. Connect and switch on the cable alarm prior to tiling or covering with self-levelling screed. The cable alarm must be turned on at all times when tiling or when any other trades are working in the room.

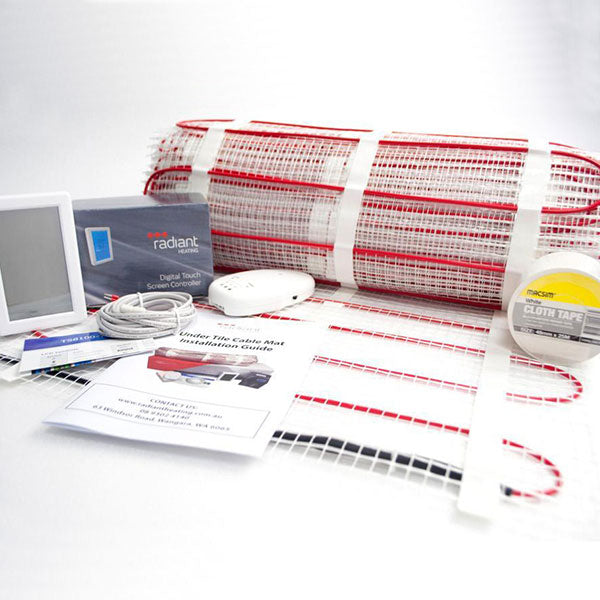

What's In The Box

  • Floor Heating Cable (attached to an adhesive mat)
  • Digital Touchscreen Thermostat
  • Floor Heating Sensor
  • Cable Alarm (for testing)
  • High Tack Woven Cloth Tape
  • Detailed Installation Instructions
