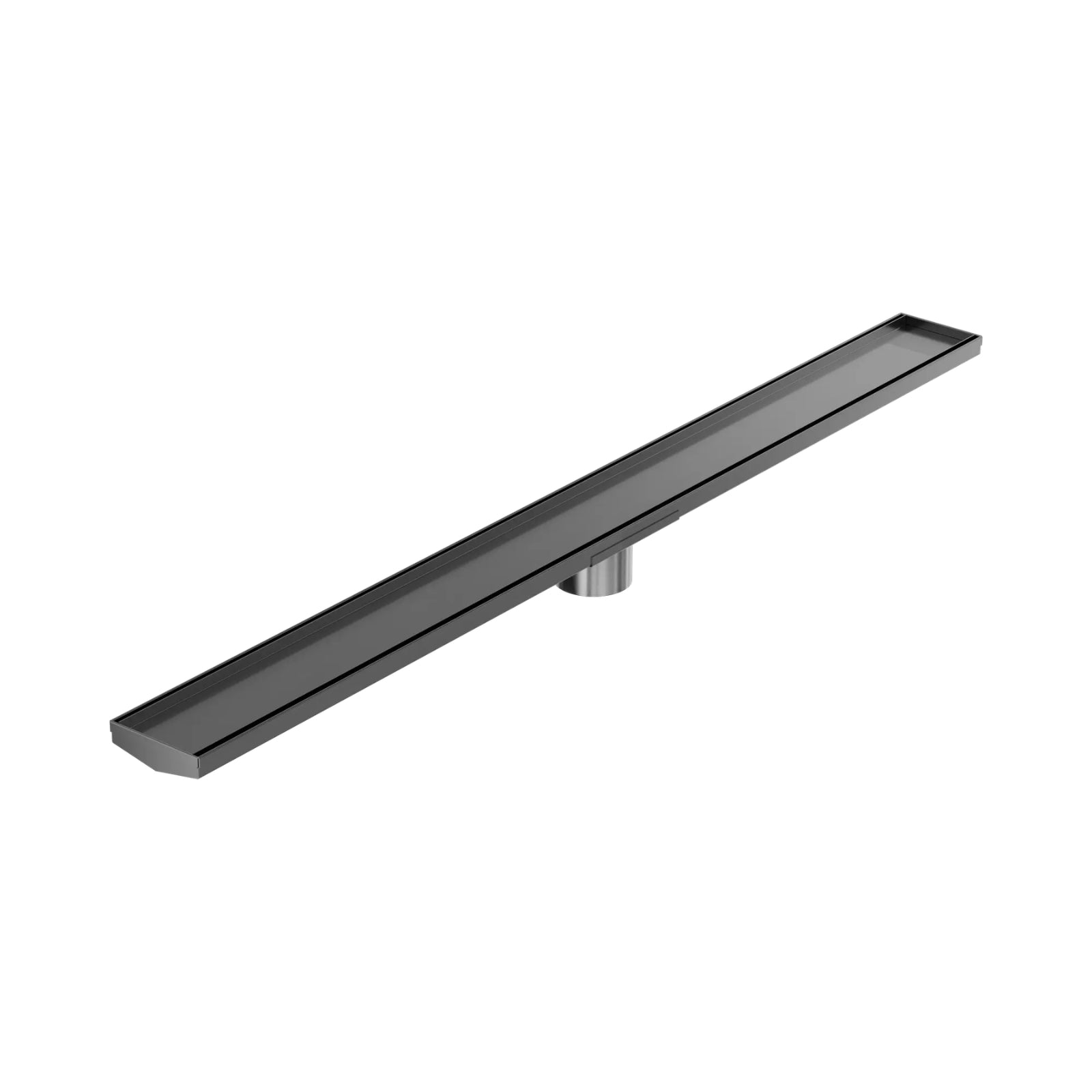

Nero Tile Insert V Channel 1200x106mm Floor Grate 80mm Outlet Gun Metal
SKU: NRFG009HSGM_KIT
Wastes Traps Grates by Nero Tapware
The Nero Tile Insert V Channel 1200mm floor grate is designed as a sleek, tile-insert solution that integrates neatly with surrounding floor finishes for a streamlined look. Crafted from 304 stainless steel in a gun metal finish, it features a V-channel profile and a separate outlet and grate design, allowing for flexible installation while supporting efficient water flow. Suited to tiles up to 10mm thick and compatible with an 80mm outlet, it offers a considered approach for contemporary wet areas where both clean lines and reliable drainage are essential.
- Fits 80mm puddle flange for easy integration
- Suitable for tiles with a thickness of less than 10mm
- Durable 304 stainless steel construction ensures long-lasting performance.
- Separate waste outlet and grate design provides greater installation flexibility.
- V-channel profile enhances water flow speed and drainage efficiency
- Available in 5 premium finishes to match various bathroom styles.
- Note: Outlet and grate are packed separately. Holesaw not included. You can add a hole saw to your order from the drop down box if required
- Supported by a 10 year warranty
Specifications
Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD

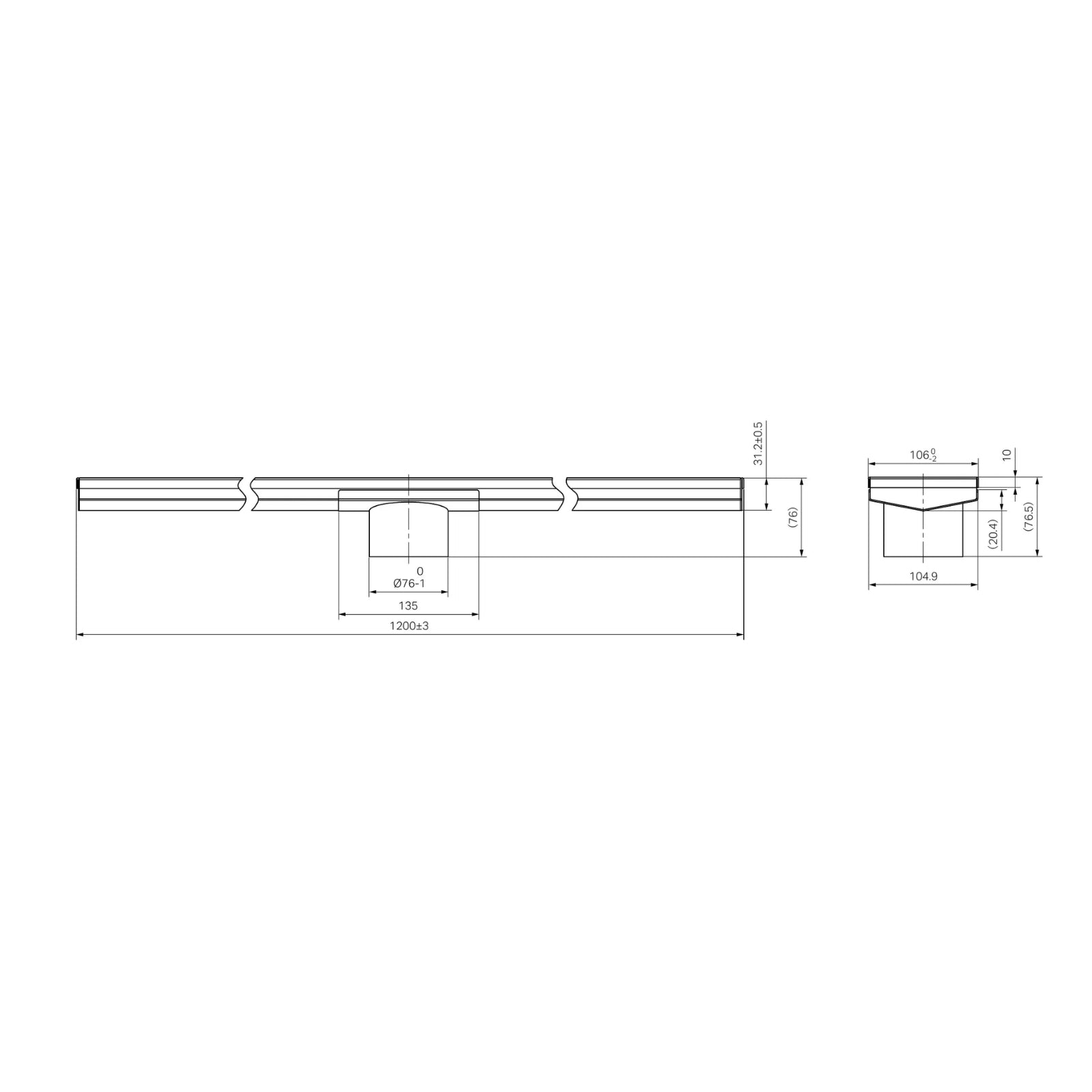

Overall length: 1200mm
Overall width: 106mm
Required Hole Size: 80mm
Warranty: 10 Years
Spec Sheet
Download the specification sheet below:
Nero Tile Insert V Channel 1200x106mm Floor Grate 80mm Outlet Gun Metal
What's In The Box
1 x Floor Grate, 1x Outlet, Installation Instructions
