Thermowire is the traditional Underfloor Heating cable kit solution designed for installing in small, awkward areas.
Thermowire cables include the most advanced Electric Underfloor Heating cable available covered with our lifetime warranty. The cable is provided with a black cloth tape which is used for securing the cable to the substrate.
The loose wire cable provides flexibility in cable spacing and allows for working around fixtures in the room. For undertile applications we recommend 150w/m² outside the bathroom and for the bathroom, either below the tiles or the screed, we recommend 200w/m².
- Thermowire underfloor heating standard cable

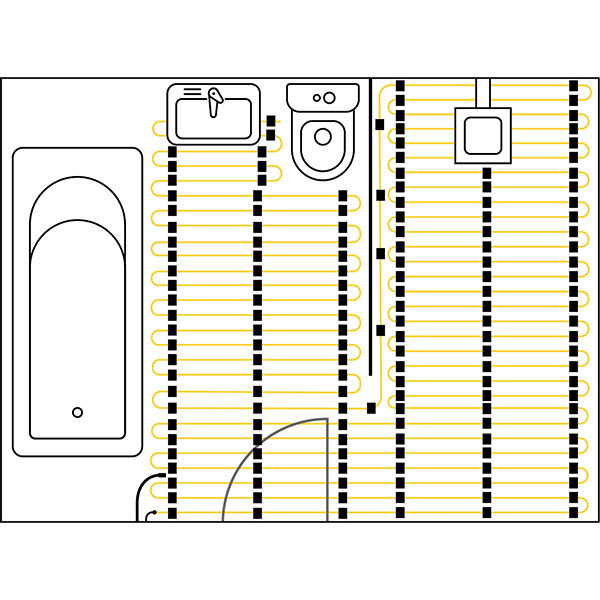

- The loose wire format offers flexibility to fit around awkward spaces and to adjust your cable spacing to achieve desired heat output
- Kit items include Thermowire cable, black cloth tape and installation guide
- Choose from 1 square metre through to 18 square metre kits
- Max temperature 28 degrees
- Protection rating IP68. Safe for use in bathrooms, showers and other wet room locations without any electrical hazard
- The cable system is only 3.5mm thick with a low profile 4mm cold tail which can be concealed within the tile adhesive layer
- The system comes with a lifetime warranty
- Made in Germany
- Thermowire is compatible with all the Thermotouch controllers. View options here
Running Costs
Greater efficiency can also be achieved by including by:
- Including a layer of insulation
- Splitting the heating into different zones
- Using a programmable thermostat to only have the heating on when you need it
There is a number of factors that will influence the efficiency and the running costs of your underfloor heating. This includes:
- The set temperature
- The size and design of the room/home
- Level of insulation
- External temperatures
- Flooring products used
- Your electricity tariff
- Length of time the floor heating is on
- If there is any other heat sources in the room
To get an estimated running cost use Thermogroup's running costs calculator.
FAQ's
Click here to see Why Underfloor Heating is a must for your bathroom and to see all of the answers to your questions.
What's In The Box
Thermowire loose wire underfloor heating cable
Floor temperature sensor
Sensor conduit
Cloth installation tape
Installation guide & warranty form
