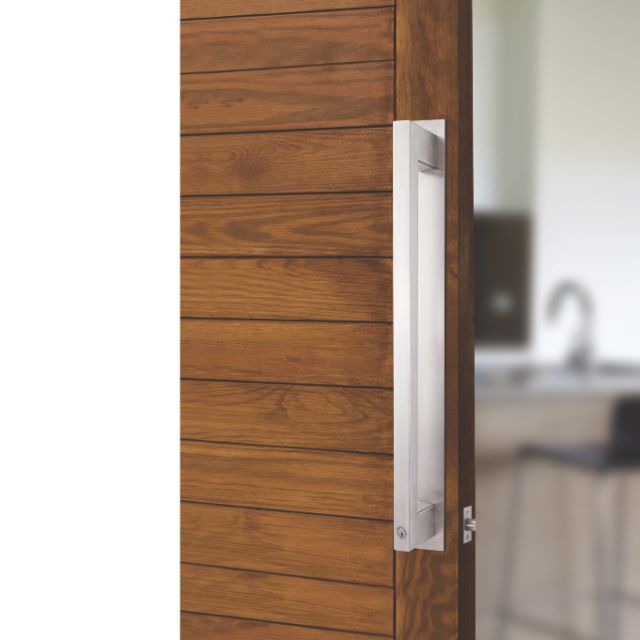

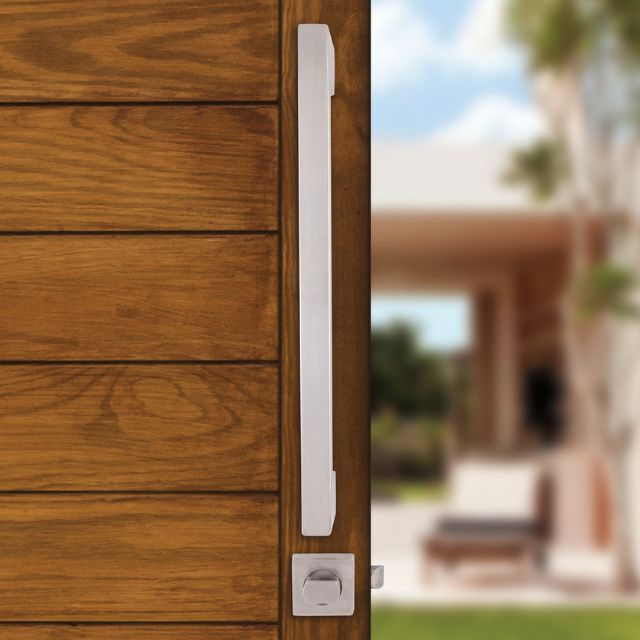

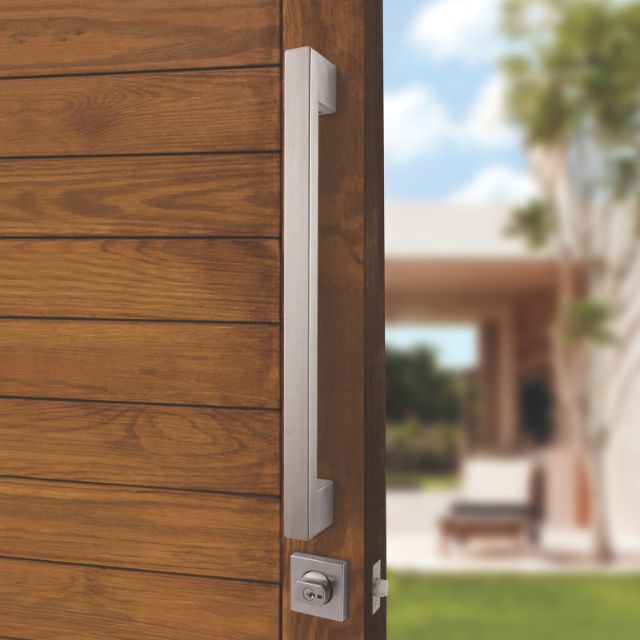

Lockwood Paradigm Pull Handle Lockset - Single Cylinder Deadlatch Stainless Steel
SKU: TBS-005/DPHLSSS
The Paradigm Pull Handle Lockset is an expertly designed and tested solution for semi-commercial and apartment buildings. With a self-latching double cylinder, it meets fire-rating requirements and is rated for up to 2 hours on fire door assemblies. Trust this stainless steel lockset for safety and security.
- High security cut resistant Stainless Steel latch
- DualSelect®Turn the key for safety mode. Turn the key further to select secure mode.
- Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
- Door Magnets included to hold the door(s) in position when it is in passage mode
- Concealed screw fixings provide a neat and clean appearance
- Kinetic Defence®Bump and pick resistant.
- Available in a full suite of door hardware options in 3 types. View the full collection here
- 25 year warranty
Specifications
Usage: Entrance Door
Material: Brushed 304 grade Stainless Steel Pull Handle
Mounting: Surface mount with 1 x 54mm hole, 16mm hole, and 25mm side bolt hole
Door Thickness: 32-48mm, 32-36mm require a spacer (included)
Latch Type: High security cut resistant Stainless Steel deadlatch
Keying: Standard Keying-Supplied individually keyed with two keys per lock
78,000 key combinations
Cylinder Type: 5 pin tumbler mechanism, Brass cylinder and brass barrel
Lock Type: Double Cylinder latch
Backset: 60mm
Finish/coating: 304 grade Stainless Steel Pull Handle with Satin Stainless Steel finish

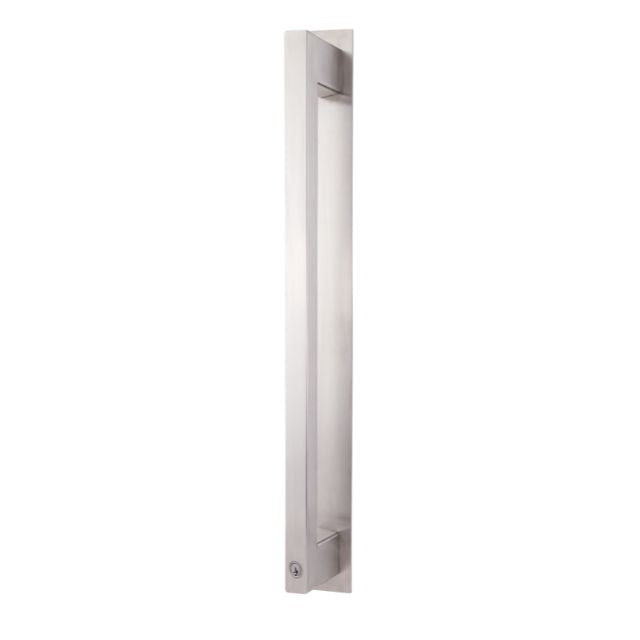

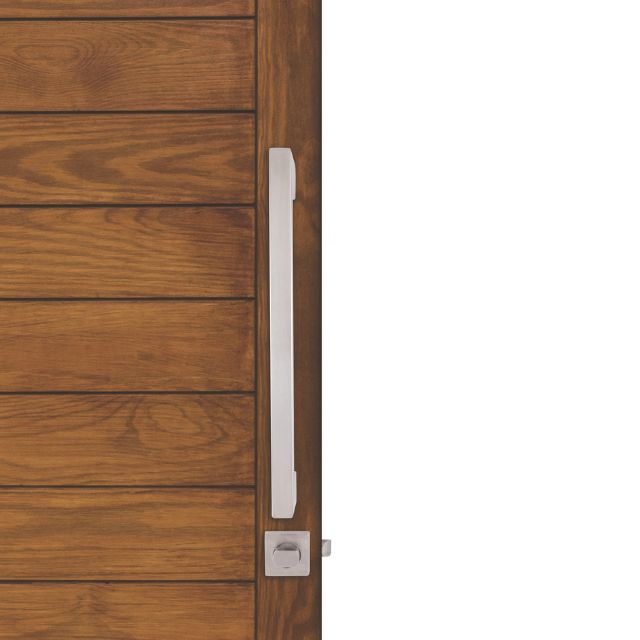

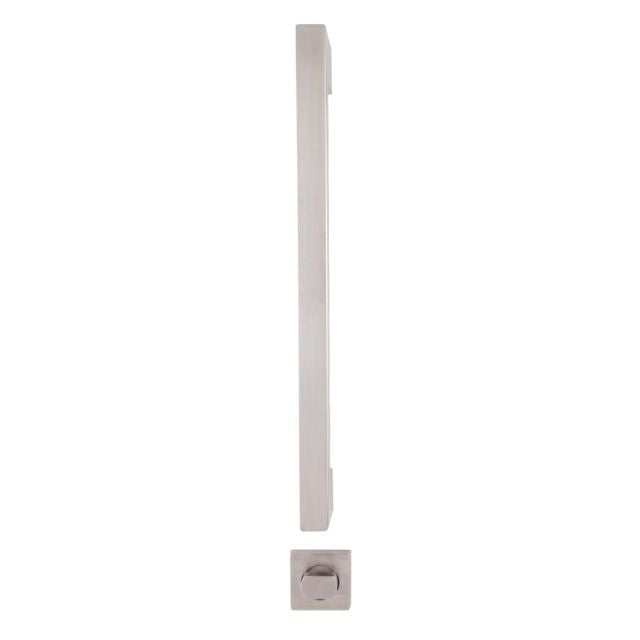

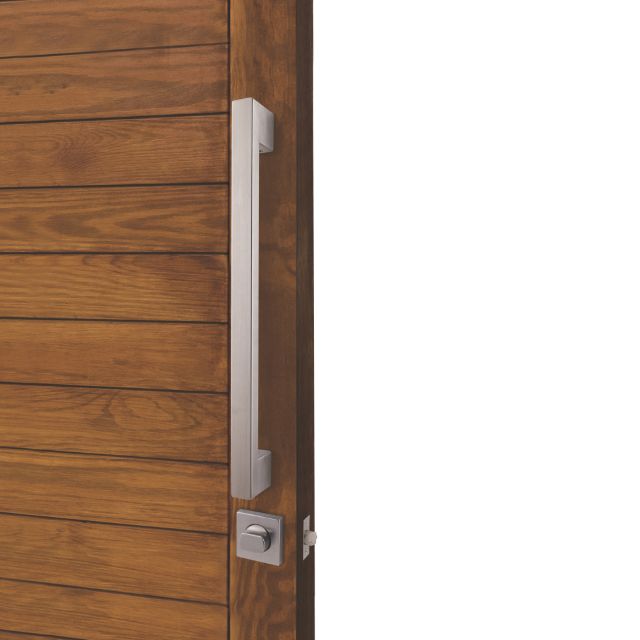

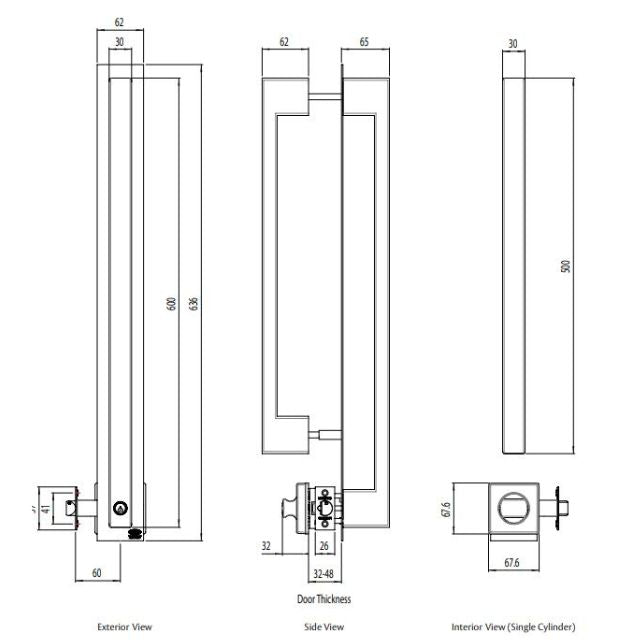

Length: External handle: length - 600mm, Internal handle: length - 500mm
Width: Handle width - 30mm
Warranty: 25 years
Installation Instructions
Download the installation instructions sheet below:
Lockwood Paradigm Pull Handle Lockset - Single Cylinder Deadlatch Stainless Steel
What's In The Box
1 x Pull Handle
